Description

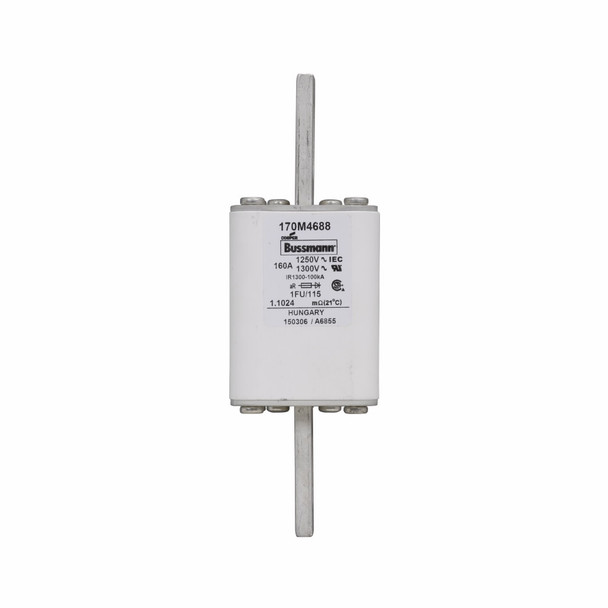

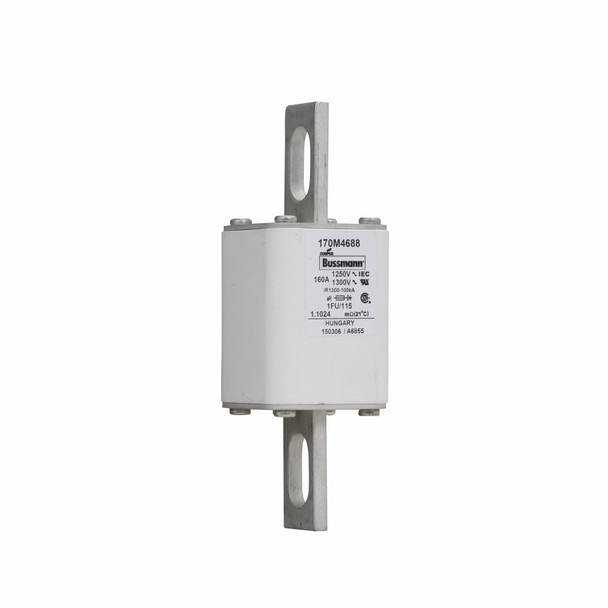

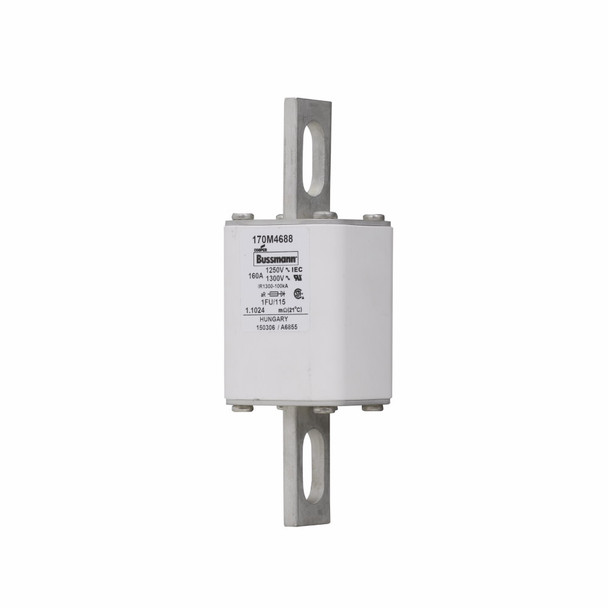

Bussmann 170M4688 High Speed Fuse
Bussmann High Speed Fuse, Type FU/115 Style, Series: 170M, Non-Indicating, 160 A, 1250 V, 100 kA Interrupt, Class: aR, 45 to 1000 Hz Frequency, Blade Terminal, Flush Mounting, Square Body, Ceramic, 160 mm L x 53 mm W x 69 mm H Body
Additional Description: BUSS-170M4688 FUSE 160A 1250V 1FU/115 AR CU
Catalog Description: Fuse-link, high speed, 160 A, AC 1250 V, size 1, 53 x 69 x 160 mm, aR, IEC, UL
Specifications
| UNSPSC | 39121625 |
|---|---|
| Amperage Rating | 160 |
| Amperage Rating | 160 A |
| Body Type | Square |
| Class | AR |
| Frequency Rating | 45 to 1000 |
| Frequency Rating | 45 to 1000 Hz |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 100 |
| Interrupt Rating | 100 kA |
| Material | Ceramic |
| Mounting type | Flush |
| Series | 170M |
| Terminal Type | Blade |
| Type | Type FU/115 Style |
| Voltage Rating | 1250 |
| Voltage Rating | 1250 V |
| Voltage Rating | 1250/1300 |
