Description

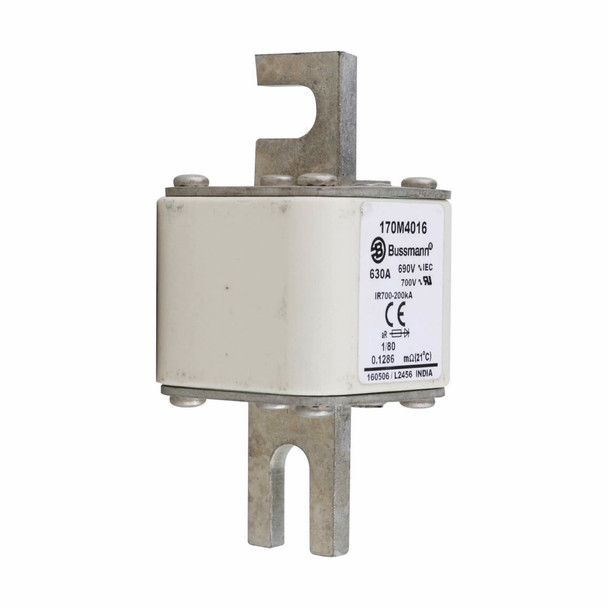

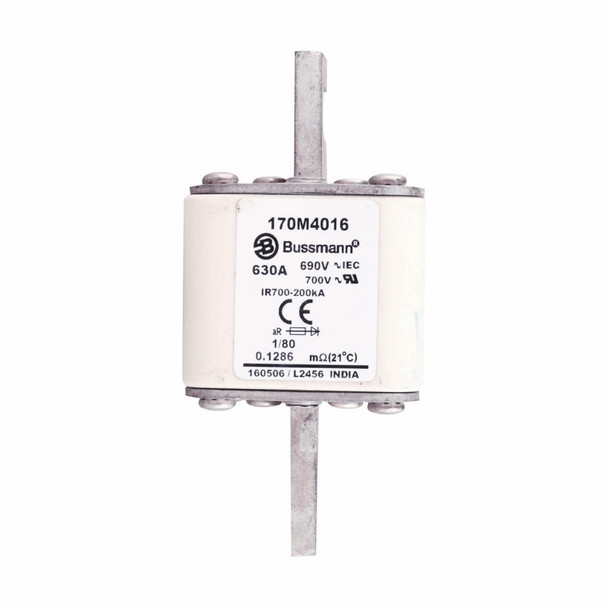

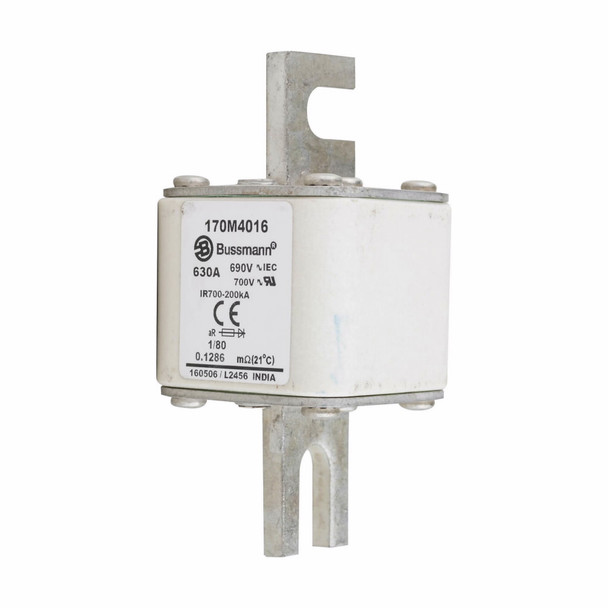

Bussmann 170M4016 High Speed Fuse
Bussmann High Speed Fuse, Type 80, Series: 170M, Non-Indicating, 630 A, 690 V, 200 kA Interrupt, Class: aR, 45 to 1000 Hz Frequency, Blade End Terminal, DIN 43 620 Mounting, Square Body, Ceramic, 108 mm L x 53 mm W x 66 mm H Body
Additional Description: BUSS-170M4016 FUSE 630A 690V 1/80 AR UC
Catalog Description: Eaton Bussmann series high speed square body fuse, 690V (IEC), 630A, 200 kAIC, Top fuse status indicator, Fuse, Blade end X blade end, Class aR, DIN 43 620
Specifications
| UNSPSC | 39121625 |
|---|---|
| Amperage Rating | 630 |
| Amperage Rating | 630 A |
| Body Type | Square |
| Class | AR |
| Frequency Rating | 45 to 1000 |
| Frequency Rating | 45 to 1000 Hz |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 200 |
| Interrupt Rating | 200 kA |
| Material | Ceramic |
| Mounting type | DIN 43 620 |
| Mounting type | Stud |
| Series | 170M |
| Terminal Type | Blade |
| Terminal Type | Blade End |
| Type | Type 80 |
| Voltage Rating | 690 V |
| Voltage Rating | 690/700 |
