Description

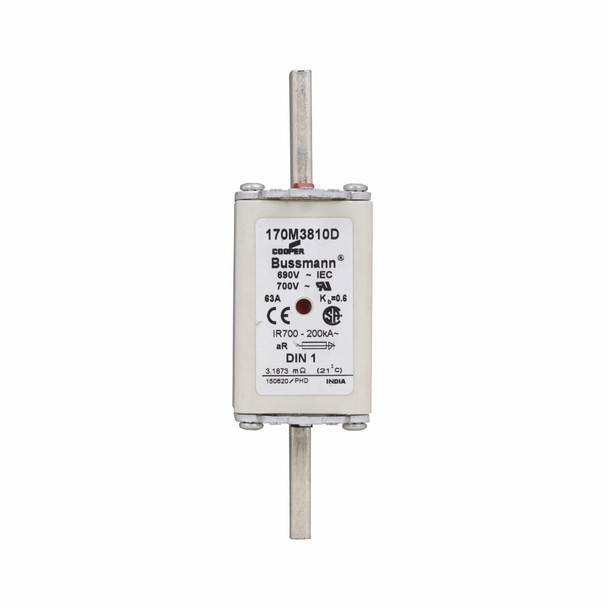

Bussmann 170M3810D High Speed Fuse
Bussmann High Speed Fuse, Square Body Type T, Series: 170M, Indicating, 63 A, 690 V, 200 kA Interrupt, Class: aR, Din 43-620 Blade End Terminal, DIN 43 620 Blade Mounting, Square Body, 135 mm L x 45 mm W x 58 mm H Body
Additional Description: BUSS-170M3810D FUSE 63A 690V aR DIN 1 HSDNH
Catalog Description: Eaton Bussmann series high speed square body fuse, 700V (UL), 690V (IEC), 63A, 200 kAIC, Combination fuse status indicator, Fuse, Din 43-620 blade end X Din 43-620 blade end, Class aR
Specifications
| UNSPSC | 39121625 |
|---|---|
| Amperage Rating | 63 |
| Amperage Rating | 63 A |
| Body Type | Square |
| Class | AR |
| Indicating/Non-Indicating | Indicating |
| Interrupt Rating | 200 |
| Interrupt Rating | 200 kA |
| Mounting type | DIN 43 620 Blade |
| Mounting type | Stud |
| Series | 170M |
| Terminal Type | DIN 43 620 Blade |
| Terminal Type | Din 43-620 Blade End |
| Type | Square Body Type T |
| Type | Type T |
| Voltage Rating | 690 V |
| Voltage Rating | 690/700 |
