Description

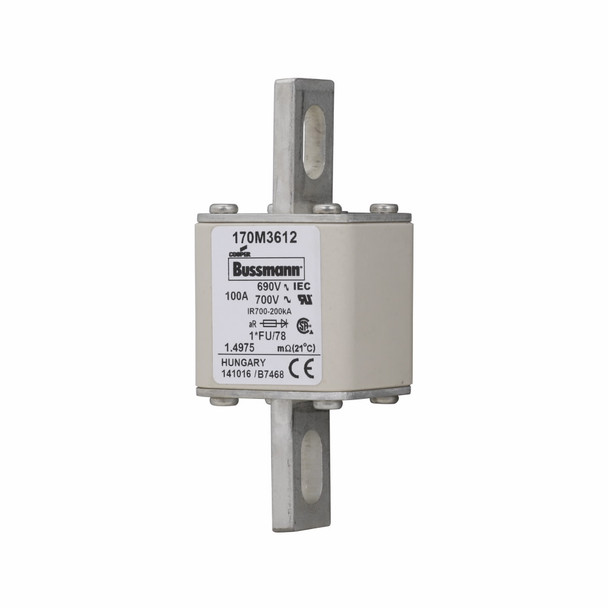

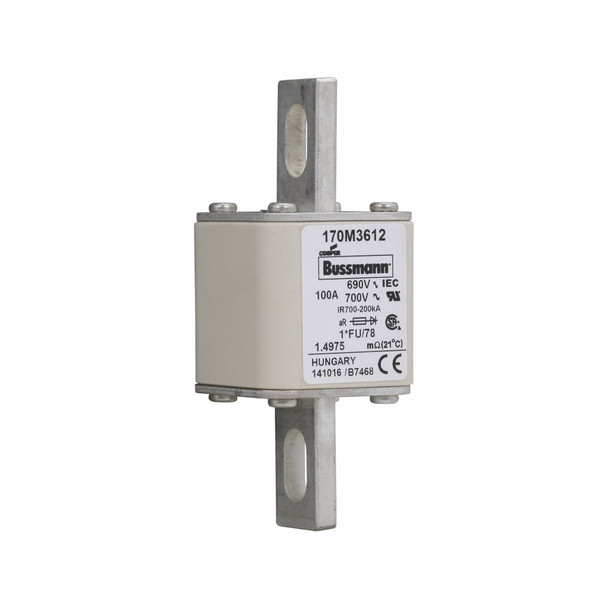

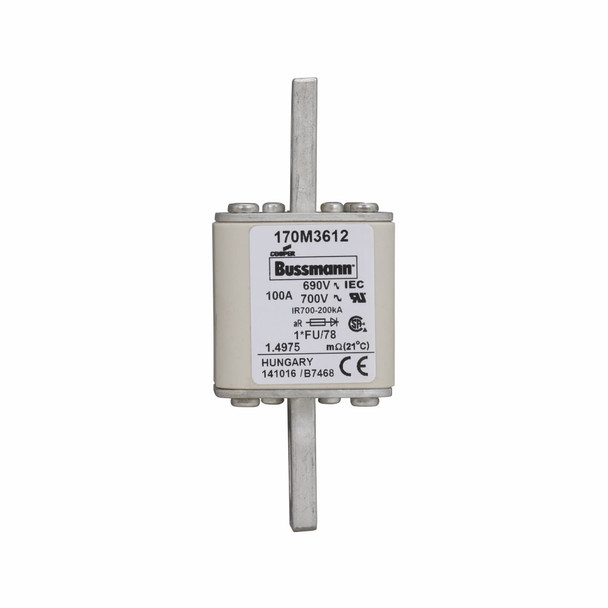

Bussmann 170M3612 High Speed Fuse
Bussmann High Speed Fuse, Square Body US Style, Series: 170M, Non-Indicating, 100 A, 690 V, 200 kA Interrupt, Class: aR, Blade End Terminal, Stud Mounting, Square Body, 110 mm L x 59 mm W x 45 mm H Body
Additional Description: BUSS-170M3612 FUSE 100A 690V 1*FU/78 AR UC
Catalog Description: Fuse-link, high speed, 100 A, AC 690 V, compact size 1, 45 x 45 x 110 mm, aR, IEC, UL
Specifications
| UNSPSC | 39121625 |
|---|---|
| Amperage Rating | 100 |
| Amperage Rating | 100 A |
| Body Type | Square |
| Class | AR |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 200 |
| Interrupt Rating | 200 kA |
| Mounting type | Stud |
| Series | 170M |
| Terminal Type | Blade |
| Terminal Type | Blade End |
| Type | Square Body US Style |
| Type | US Style |
| Voltage Rating | 690 V |
| Voltage Rating | 690/700 |
