Description

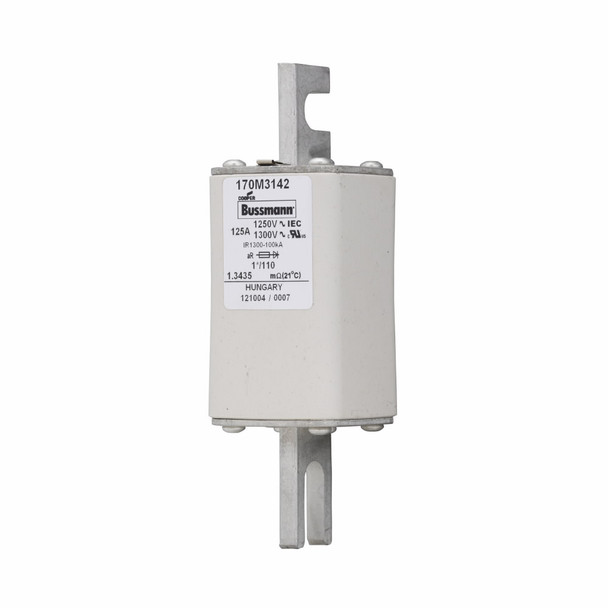

Bussmann 170M3142
Bussmann High Speed Fuse, Semi-Conductor, Series: 170M, Non-Indicating, 125 A, 1250 V, 100 kA Interrupt, Class: aR, DIN 43 620 Blade Mounting, Square Body, 5.433 in L x 0.315 in W x 2.087 in H Body
Additional Description: BUSS-170M3142 FUSE 125A 1250V 1*/110 AR CU
Catalog Description: Fuse-link, high speed, 125 A, AC 1250 V, compact size 1, 45 x 45 x 138 mm, aR, DIN, IEC, single indicator
Specifications
| UNSPSC | 39121625 |
|---|---|
| Amperage Rating | 125 A |
| Body Type | Square |
| Class | AR |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 100 kA |
| Mounting type | DIN 43 620 Blade |
| Series | 170M |
| Type | Semi-Conductor |
| Voltage Rating | 1250 V |
