Description

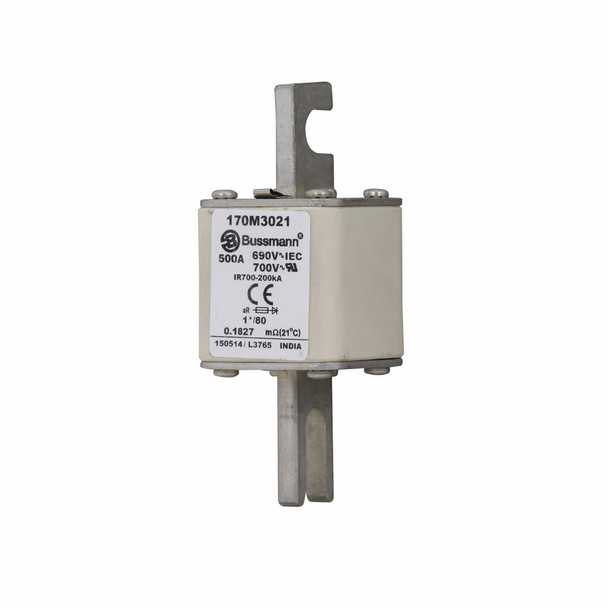

Bussmann 170M3021 High Speed Fuse
Bussmann High Speed Fuse, Type 80, Series: 170M, Non-Indicating, 500 A, 690 V, 200 kA Interrupt, Class: aR, 45 to 1000 Hz Frequency, Blade End Terminal, DIN 43-653 Stud Mounting, Square Body, Ceramic, 104 mm L x 45 mm W x 58 mm H Body
Additional Description: BUSS-170M3021 FUSE 500A 690V 1*/80 AR UC
Catalog Description: Fuse-link, high speed, 500 A, AC 690 V, compact DIN 1, 45 x 45 x 104 mm, aR, DIN, IEC, single indicator
Specifications
| UNSPSC | 39121625 |
|---|---|
| Amperage Rating | 500 |
| Amperage Rating | 500 A |
| Body Type | Square |
| Class | AR |
| Frequency Rating | 45 to 1000 |
| Frequency Rating | 45 to 1000 Hz |
| Indicating/Non-Indicating | Indicating |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 200 |
| Interrupt Rating | 200 kA |
| Material | Ceramic |
| Mounting type | DIN 43-653 Stud |
| Mounting type | Stud |
| Series | 170M |
| Terminal Type | Blade |
| Terminal Type | Blade End |
| Type | Type 80 |
| Voltage Rating | 690 V |
| Voltage Rating | 690/700 |
