Description

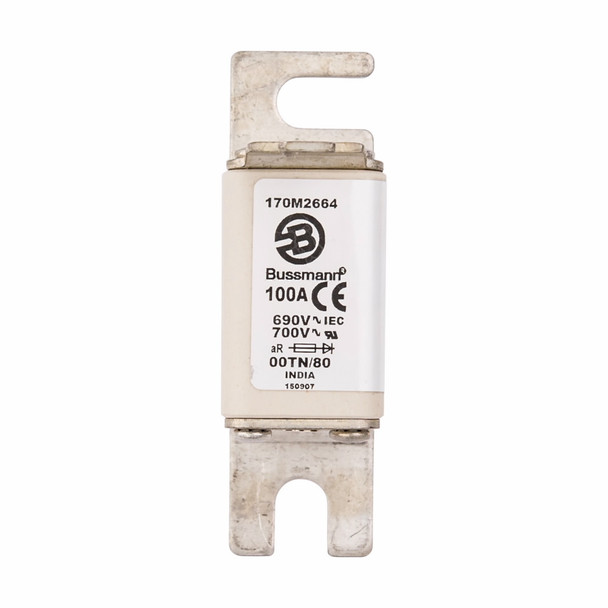

Bussmann 170M2664 High Speed Fuse
Bussmann High Speed Fuse, Type TN/80/T, Series: 170M, Indicating/Non-Indicating: Non-Indicating, 100 A, 690 V, 200 kA Interrupt, Class: AR, 45 to 1000 Hz, Blade Terminal, Stud Mount, Square Body Type, Ceramic, 100 mm L x 30 mm W x 51 mm H Body Size
Additional Description: BUSS-170M2664 FUSE 100A 690V 00TN/80 AR UR
Catalog Description: Fuse-link, high speed, 100 A, AC 690 V, DIN 00, aR, DIN, IEC, single indicator, live gripping lugs
Specifications
| UNSPSC | 39121625 |
|---|---|
| Amperage Rating | 100 |
| Amperage Rating | 100 A |
| Body Type | Square |
| Body Type | Square Blade |
| Class | AR |
| Frequency Rating | 45 to 1000 Hz |
| Indicating/Non-Indicating | Indicating |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 200 |
| Interrupt Rating | 200 kA |
| Material | Ceramic |
| Mounting type | Stud |
| Series | 170M |
| Terminal Type | Blade |
| Terminal Type | Bolt Down |
| Type | Fast Blow |
| Type | Type TN/80/T |
| Voltage Rating | 690 V |
| Voltage Rating | 690/700 |
