Description

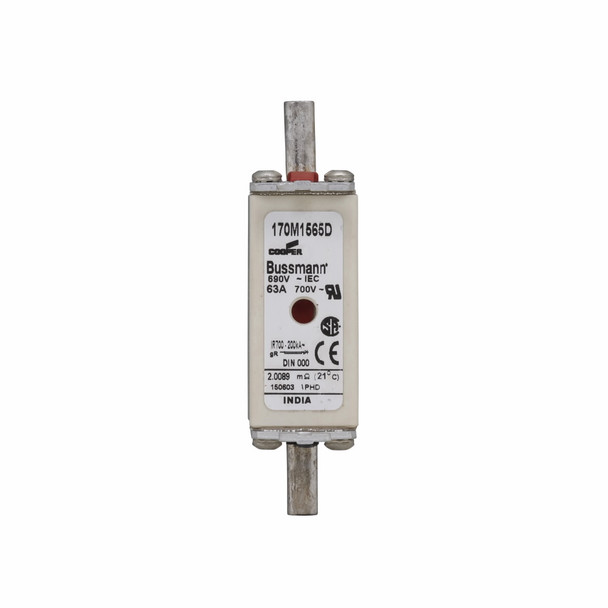

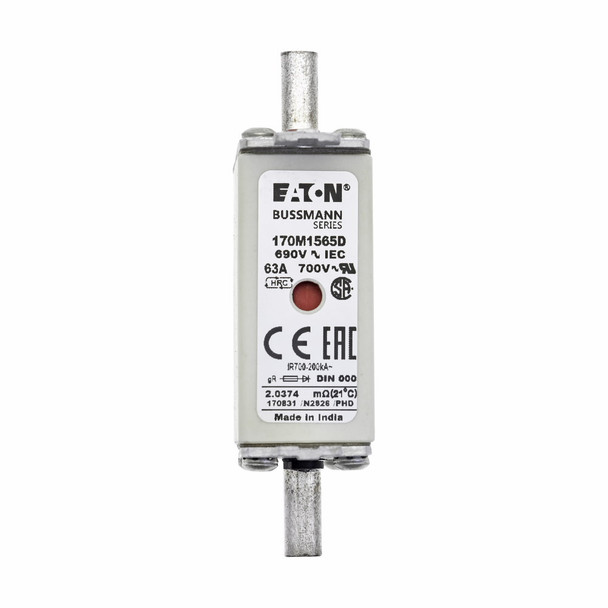

Bussmann 170M1565D High Speed Fuse
Bussmann High Speed Fuse, Square Body Type T, Series: 170M, Non-Indicating, 63 A, 690 V, 200 kA Interrupt, Class: gR, 45 to 1000 Hz Frequency, Din 43-620 Blade End Terminal, Stud Mounting, Square Body, Dual Element, Ceramic, 79 mm L x 21 mm W x 48 mm H Body
Additional Description: BUSS-170M1565D FUSE 63A 690V gR DIN 000 HSDNH
Catalog Description: Eaton Bussmann series high speed square body fuse, 690V (IEC), 63A, 200 kAIC, Combination fuse status indicator, Fuse, Din 43-620 blade end X Din 43-620 blade end, Class gR
Specifications
| UNSPSC | 39121625 |
|---|---|
| Amperage Rating | 63 |
| Amperage Rating | 63 A |
| Body Type | Square |
| Class | gR |
| Frequency Rating | 45 to 1000 |
| Frequency Rating | 45 to 1000 Hz |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 200 |
| Interrupt Rating | 200 kA |
| Material | Ceramic |
| Mounting type | Stud |
| Series | 170M |
| Terminal Type | Blade |
| Terminal Type | Din 43-620 Blade End |
| Type | Square Body Type T |
| Type | Type T |
| Voltage Rating | 690 V |
| Voltage Rating | 690/700 |
