Description

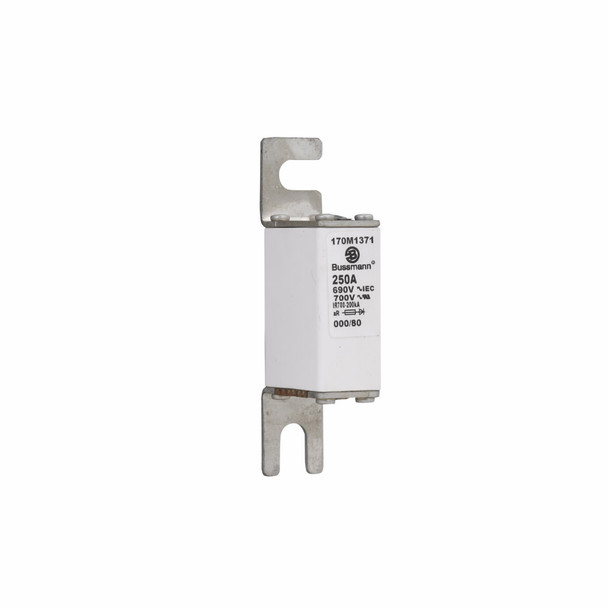

Bussmann 170M1371 High Speed Fuse
Bussmann High Speed Fuse, Type 80, Series: 170M, Indicating/Non-Indicating: Non-Indicating, 250 A, 690 VAC, 200 kA Interrupt, Class: aR, 45 to 1000 Hz, Blade End Terminal, DIN 43-653 Stud Mount, Square Body, Ceramic, 100 mm L x 21 mm W x 40 mm H Body Size
Additional Description: BUSS-170M1371 FUSE 250A 690V 000/80 AR UC
Catalog Description: Eaton Bussmann series high speed square body fuse, 700V (UL), 690V (IEC), 250 A, 200 kAIC, Top fuse status indicator, Fuse, Blade end X blade end, Class aR, DIN 43 620
Specifications
| UNSPSC | 39121625 |
|---|---|
| Amperage Rating | 250 |
| Amperage Rating | 250 A |
| Body Type | Square |
| Class | AR |
| Frequency Rating | 45 to 1000 |
| Frequency Rating | 45 to 1000 Hz |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 200 |
| Interrupt Rating | 200 kA |
| Material | Ceramic |
| Mounting type | DIN 43-653 Stud |
| Mounting type | Stud |
| Series | 170M |
| Terminal Type | Blade |
| Terminal Type | Blade End |
| Type | Type 80 |
| Voltage Rating | 690 |
| Voltage Rating | 690 VAC |
| Voltage Rating | 690/700 |
