Description

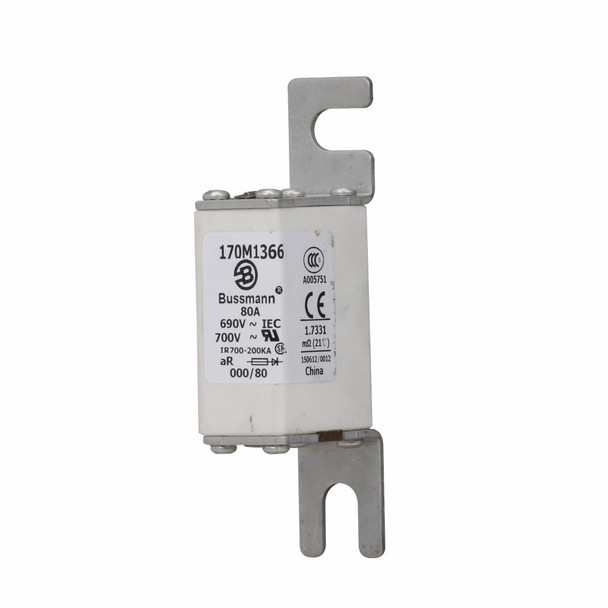

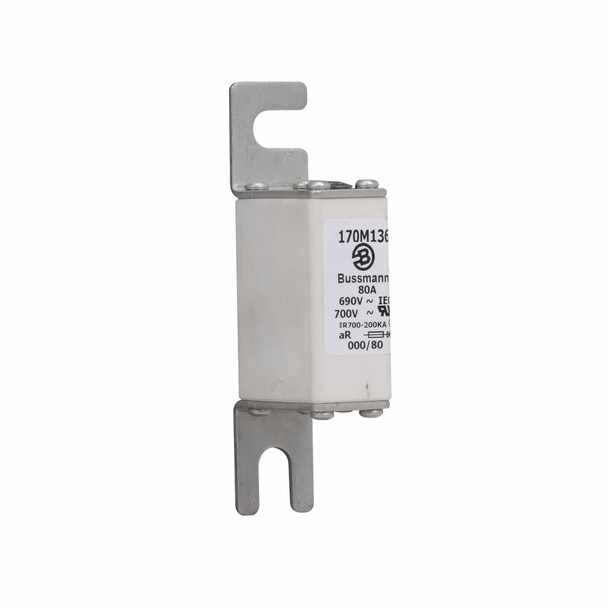

Bussmann 170M1366 High Speed Fuse
Bussmann High Speed Fuse, Type 80, Series: 170M, Indicating/Non-Indicating: Non-Indicating, 80 A, 690 VAC, 200 kA Interrupt, Class: aR, 45 to 1000 Hz, Blade End Terminal, DIN 43 620 Mount, Square Body, Ceramic, 100 mm L x 21 mm W x 40 mm H Body Size
Additional Description: BUSS-170M1366 FUSE 80A 690V 000/80 AR UC
Catalog Description: Eaton Bussmann series high speed square body fuse, 80 A, 690 V (IEC), 700 V (UL), Size 0, Top fuse status indicator
Specifications
| UNSPSC | 39121625 |
|---|---|
| Amperage Rating | 80 A |
| Body Type | Square |
| Class | AR |
| Frequency Rating | 45 to 1000 Hz |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 200 kA |
| Material | Ceramic |
| Mounting type | DIN 43 620 |
| Series | 170M |
| Terminal Type | Blade End |
| Type | Type 80 |
| Voltage Rating | 690 VAC |
