Description

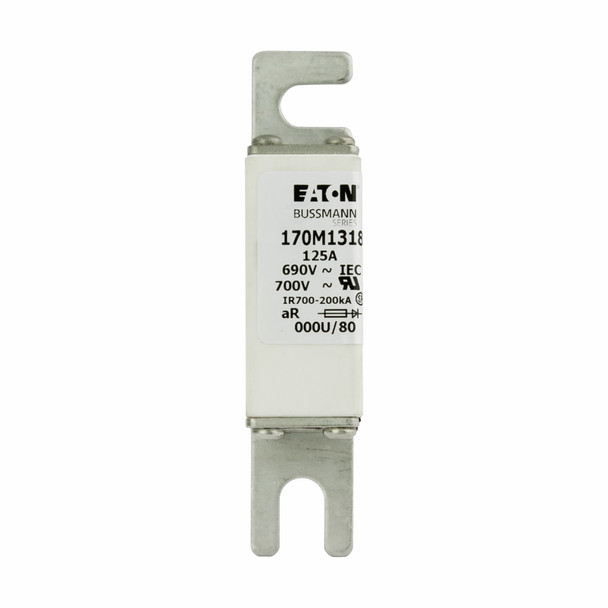

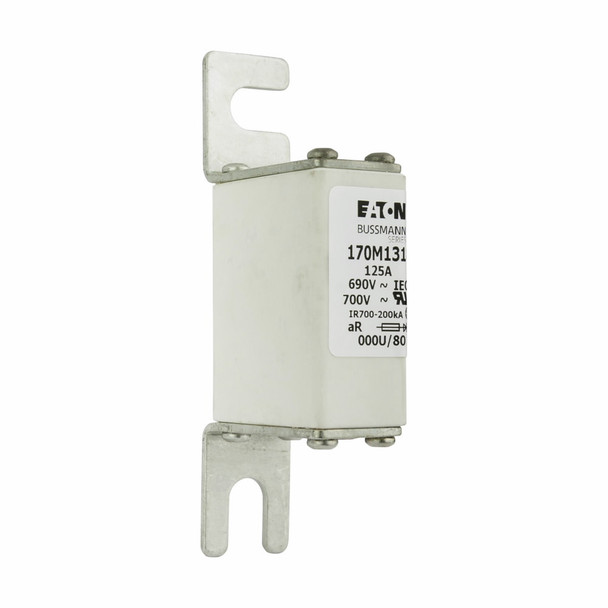

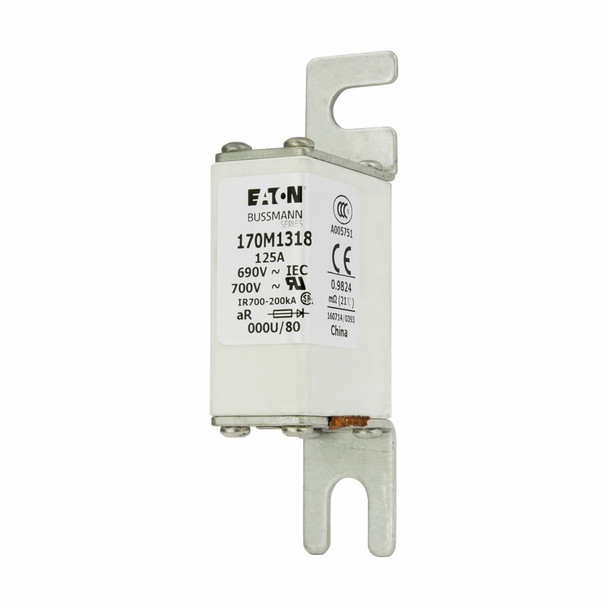

Bussmann 170M1318 High Speed Fuse
Bussmann High Speed Fuse, Type U/80, Series: 170M, Indicating/Non-Indicating: Non-Indicating, 125 A, 690 V, 200 kA Interrupt, Class: AR, 45 to 1000 Hz, Blade Terminal, Stud Mount, Square Body Type, Ceramic, 1 mm L x 21 mm W x 40 mm H Body Size
Additional Description: BUSS-170M1318 FUSE 125A 690V 000U/80 AR UC
Catalog Description: Eaton Bussmann series high speed square body fuse, 690V, 125A, 200 kAIC, None, Fuse, Blade end X blade end, Class aR, DIN 43 620
Specifications
| UNSPSC | 39121625 |
|---|---|
| Amperage Rating | 125 A |
| Body Type | Square |
| Class | AR |
| Frequency Rating | 45 to 1000 |
| Frequency Rating | 45 to 1000 Hz |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 200 |
| Interrupt Rating | 200 kA |
| Material | Ceramic |
| Mounting type | Stud |
| Series | 170M |
| Terminal Type | Blade |
| Type | Type U/80 |
| Voltage Rating | 690 V |
| Voltage Rating | 690/700 |
