Description

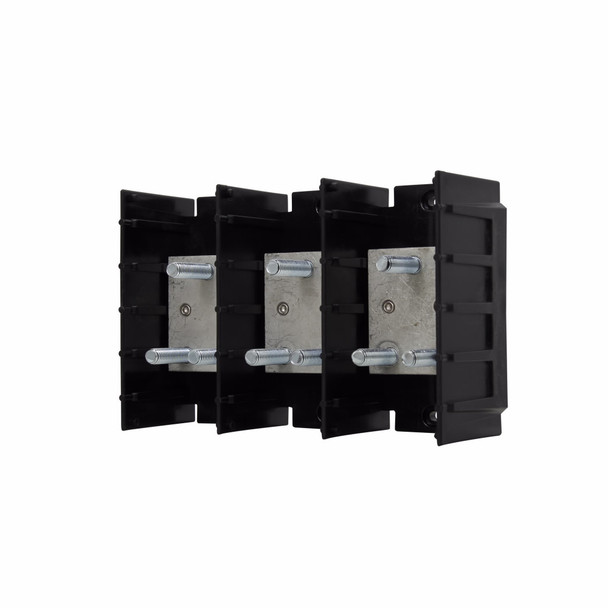

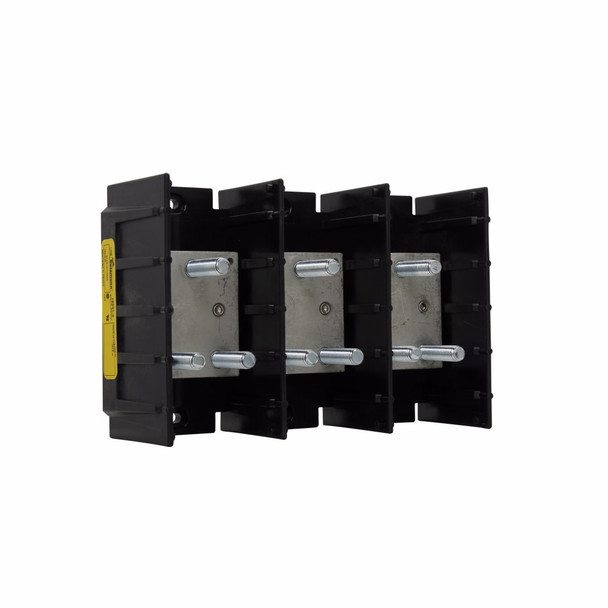

Bussmann 16591-1 Power Stud Terminal Block
Bussmann Power Terminal Block, Barrier, Series: 165, 600 VAC/VDC, 400 A, 1 Pole, (1) 3/8-16 x 1-7/16 in Stud Primary Connections/Pole, (2) 3/8-16 x 1-7/16 in Stud Secondary Connection/Pole, 10 kA Short Circuit Current Rating, Thermoplastic, Black, 5.5 in L x 3.11 in W x 2.94 in H
Additional Description: BUSS-16591-1 (N) POWER DISTRIBUTION BLOCK NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann series power terminal block, Power terminal block, Single-pole - 16591-1
Specifications
| UNSPSC | 39121629 |
|---|---|
| Amperage Rating | 400 |
| Amperage Rating | 400 A |
| Color | Black |
| Dimensions | 3.1 in L x 5.5 in W x 2.93 in H |
| Dimensions | 5.5 in L x 3.11 in W x 2.94 in H |
| Finish | Tin Plated |
| Material | Thermoplastic |
| Number of Poles | 1 |
| Series | 165 |
| Short Circuit Current Rating (kA) | 10 |
| Short Circuit Current Rating (kA) | 10 kA |
| Type | Barrier |
| Type | Barrier Splicer |
| Voltage Rating | 600 |
| Voltage Rating | 600 VAC/VDC |
