Description

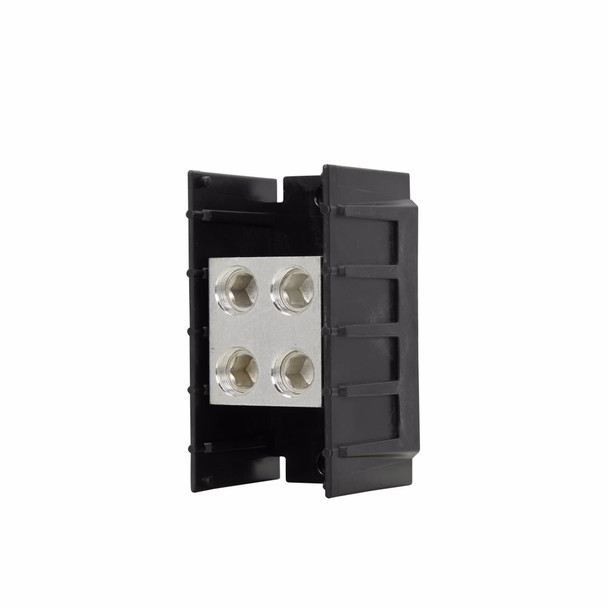

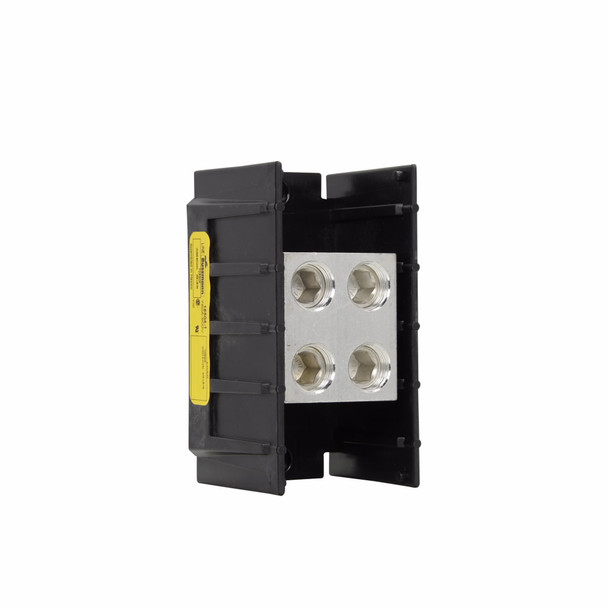

Bussmann 16504-1 Power Distribution Block
Bussmann Power Splicer Block, Barrier, Series: 165, 600 VAC/VDC, 760 A, 1 Pole, 2 Primary Connections/Pole, 2 Secondary Connection/Pole, (2) 6 AWG to 500 kcmil Cu/Al Line/Load Wire, 10 kA Short Circuit Current Rating, Thermoplastic, Black, 5.5 in L x 3.11 in W x 2.94 in H
Additional Description: BUSS-16504-1 (N) USD TERMINAL BLOCK NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann series power splicer block, Power splicer block, Single-pole
Specifications
| UNSPSC | 39121629 |
|---|---|
| Amperage Rating | 760 |
| Amperage Rating | 760 A |
| Color | Black |
| Dimensions | 3.1 in L x 5.5 in W x 2.93 in H |
| Dimensions | 5.5 in L x 3.11 in W x 2.94 in H |
| Finish | Tin Plated |
| Material | Thermoplastic |
| Number of Poles | 1 |
| Series | 165 |
| Short Circuit Current Rating (kA) | 10 |
| Short Circuit Current Rating (kA) | 10 kA |
| Type | Barrier |
| Type | Barrier Splicer |
| Type | Splicer |
| Voltage Rating | 600 |
| Voltage Rating | 600 VAC/VDC |
| Wire Size | (2) 6 AWG to 500 kcmil Cu/Al Line/Load |
| Wire Size | 6 AWG to 500 kcmil |
