Description

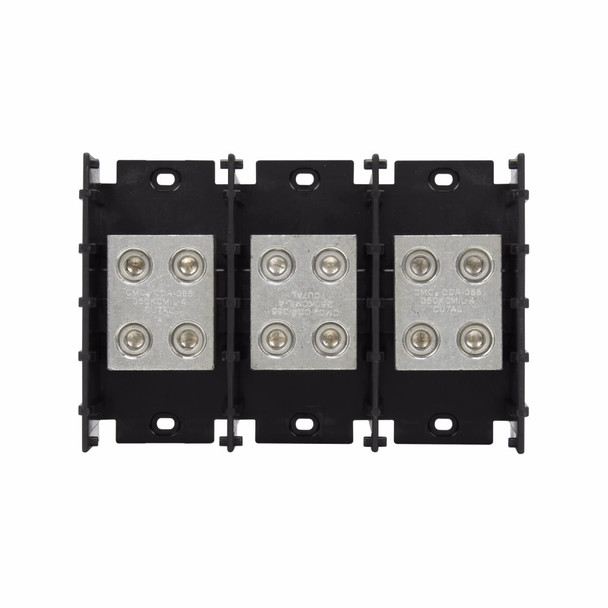

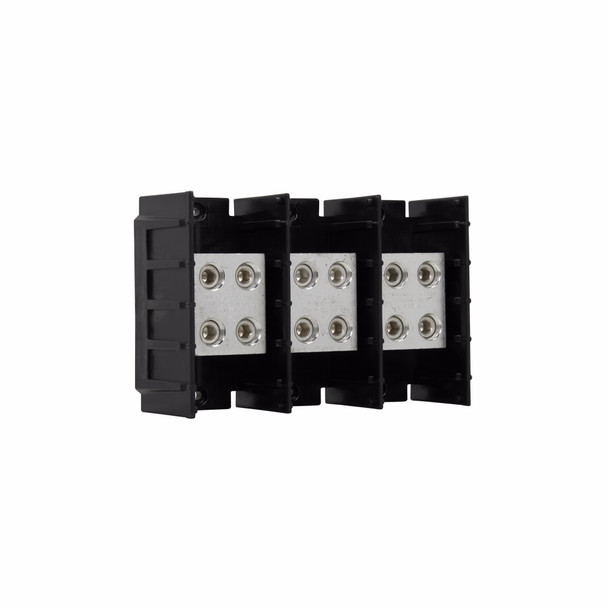

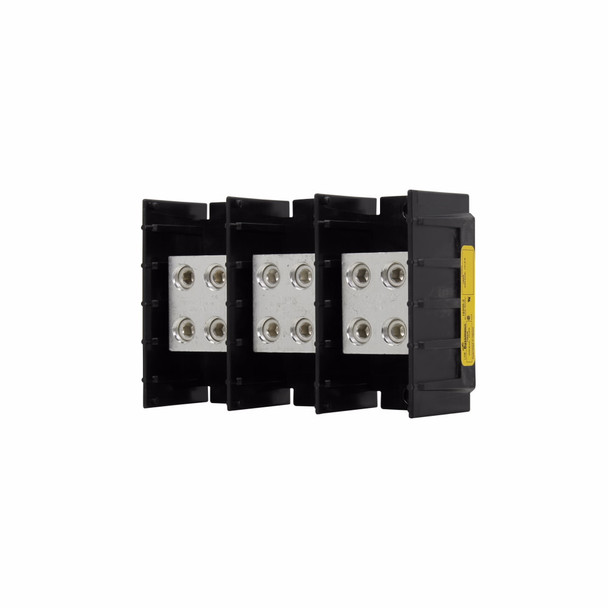

Bussmann 16500-3 Power Terminal Block
Bussmann Power Splicer Block, Barrier, Series: 165, 600 VAC/VDC, 620 A, 3 Pole, 4 AWG to 350 kcmil Cu/AL Line/Load Wire, 10 kA Short Circuit Current Rating, Aluminum/Thermoplastic, Tin Plated, Black, 8.48 in L x 5.5 in W x 2.93 in H
Additional Description: BUSS-16500-3 BUSS BLOCK WAS PTA3523
Catalog Description: Eaton Bussmann series power splicer block, 600 Vac, 600 Vdc, 620 A, Three-pole, SCCR: 10 kA, Black, Molded Thermoplastic Base, Tin-plated aluminum connector
Specifications
| UNSPSC | 39121629 |
|---|---|
| Amperage Rating | 620 |
| Amperage Rating | 620 A |
| Color | Black |
| Dimensions | 8.48 in L x 5.5 in W x 2.93 in H |
| Finish | Tin Plated |
| Material | Aluminum/Thermoplastic |
| Material | Thermoplastic |
| Number of Poles | 3 |
| Series | 165 |
| Short Circuit Current Rating (kA) | 10 |
| Short Circuit Current Rating (kA) | 10 kA |
| Terminal Type | Splicer/Screw |
| Type | Barrier |
| Type | Barrier Molded |
| Type | Barrier/Splicer |
| Voltage Rating | 600 |
| Voltage Rating | 600 VAC/VDC |
| Wire Size | 4 AWG to 350 kcmil |
| Wire Size | 4 AWG to 350 kcmil Cu/AL Line/Load |
