Description

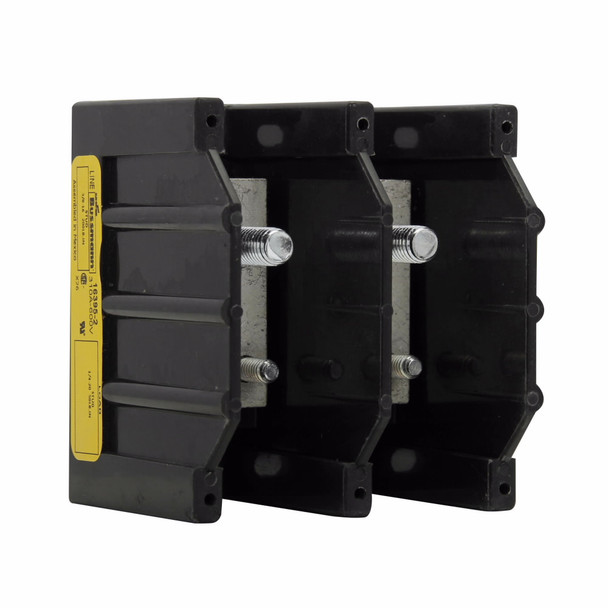

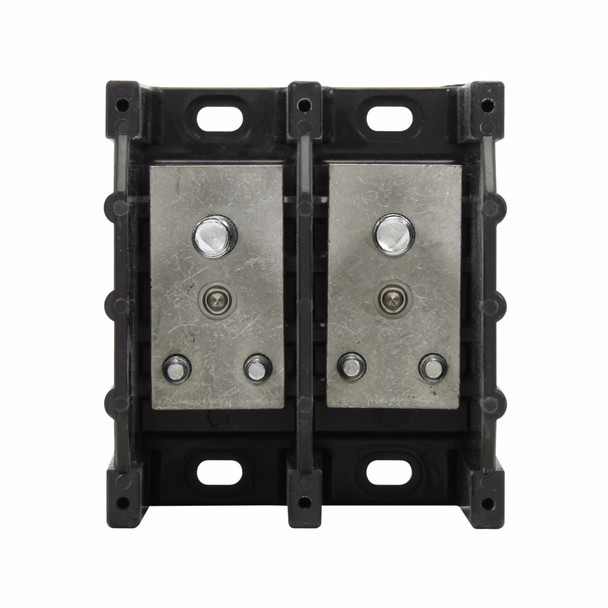

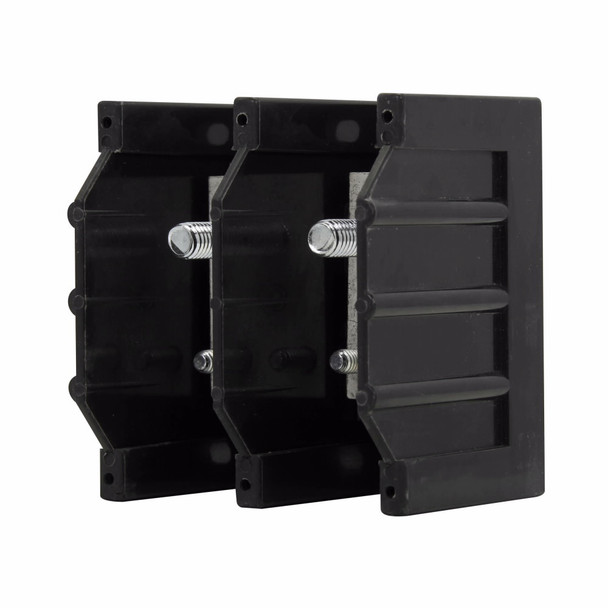

Bussmann 16395-2 Power Terminal Block
Bussmann Power Terminal Block, Series: 163, 600 VAC/VDC, 310 A, 2 Pole, (1) 3/8-16 x 1-7/16 in Stud Primary Connections/Pole, (2) 1/4-20 x 9/16 in Stud Secondary Connection/Pole, 10 kA Short Circuit Current Rating, Thermoplastic, Black, 3.58 in L x 4 in W x 3.32 in H
Additional Description: BUSS-16395-2 (N) POWER DISTRIBUTION BLOCK NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann series power terminal block, Power terminal block, Two-pole - 16395-2
Specifications
| UNSPSC | 39121629 |
|---|---|
| Amperage Rating | 310 |
| Amperage Rating | 310 A |
| Color | Black |
| Dimensions | 3.58 in L x 4 in W x 3.32 in H |
| Dimensions | 3.6 in L x 4 in W x 3.32 in H |
| Finish | Tin Plated |
| Material | Thermoplastic |
| Number of Poles | 2 |
| Series | 163 |
| Short Circuit Current Rating (kA) | 10 |
| Short Circuit Current Rating (kA) | 10 kA |
| Type | 0 |
| Type | Connector to Stud |
| Type | Stud to Stud |
| Voltage Rating | 600 |
| Voltage Rating | 600 VAC/VDC |
| Wire Size | 14 to 2/0 |
| Wire Size | 3/8-16 x 1-7/16 in Stud |
