Description

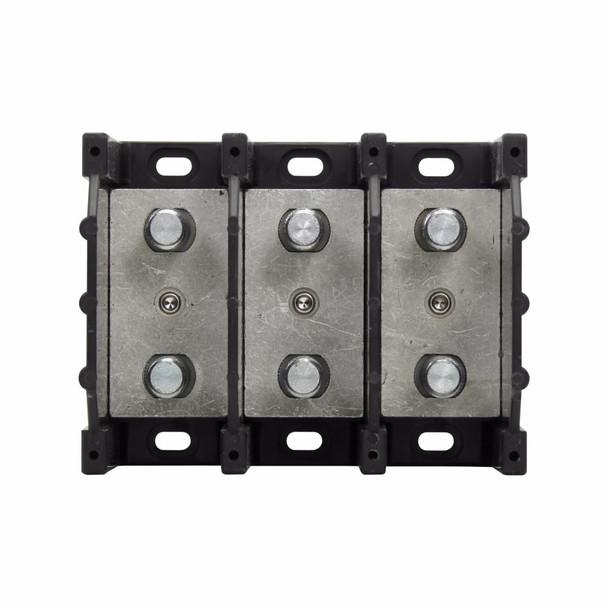

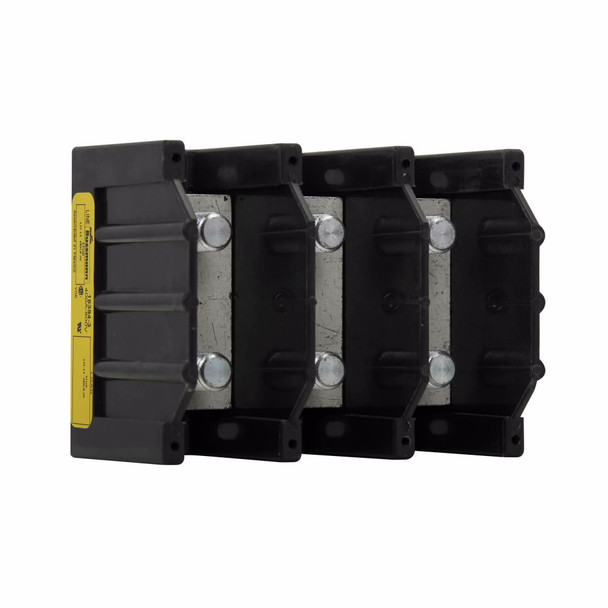

Bussmann 16394-3 Power Terminal Block
Bussmann Power Terminal Block, Barrier, Series: 163, 600 VAC/VDC, 400 A, 3 Pole, 1/2-13 x 1-1/16 in Stud Primary Connections/Pole, 1/2-13 x 1-1/16 in Stud Secondary Connection/Pole, 10 kA Short Circuit Current Rating, Aluminum/Thermoplastic, Tin Plated, Black, 5.21 in L x 4 in W x 3.32 in H
Additional Description: BUSS-16394-3 POWER DISTRIBUTION BLOCK
Catalog Description: Eaton Bussmann series power terminal block, 600 Vac, 600 Vdc, 400A, Power terminal block, Three-pole, 1/2 In-13 TPI X 1-1/16 In Stud (Line/Load), SCCR: 10 kA, Black, Molded Thermoplastic Base, Tin-plated aluminum connector
Specifications
| UNSPSC | 39121629 |
|---|---|
| Amperage Rating | 400 |
| Amperage Rating | 400 A |
| Color | Black |
| Dimensions | 5.21 in L x 4 in W x 3.32 in H |
| Finish | Tin Plated |
| Material | Aluminum/Thermoplastic |
| Material | Thermoplastic |
| Number of Poles | 3 |
| Series | 163 |
| Short Circuit Current Rating (kA) | 10 |
| Short Circuit Current Rating (kA) | 10 kA |
| Type | Barrier |
| Type | Barrier Stud to Stud |
| Type | Barrier/Connector to Stud |
| Voltage Rating | 600 |
| Voltage Rating | 600 VAC/VDC |
| Wire Size | 1/2-13 x 1-1/16 in Stud |
