Description

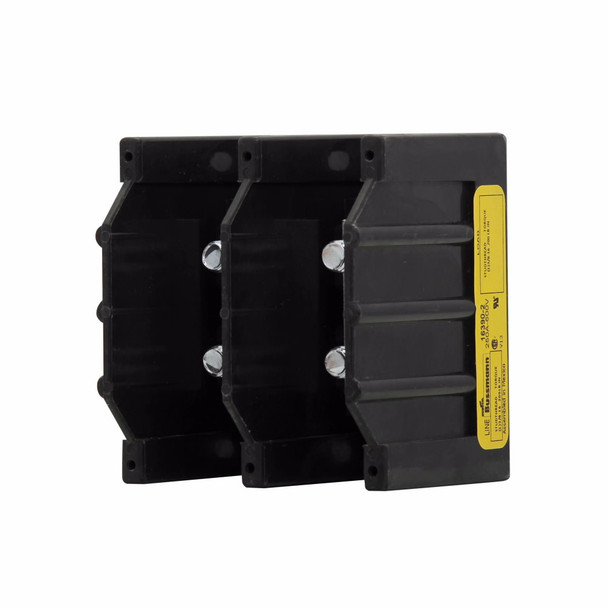

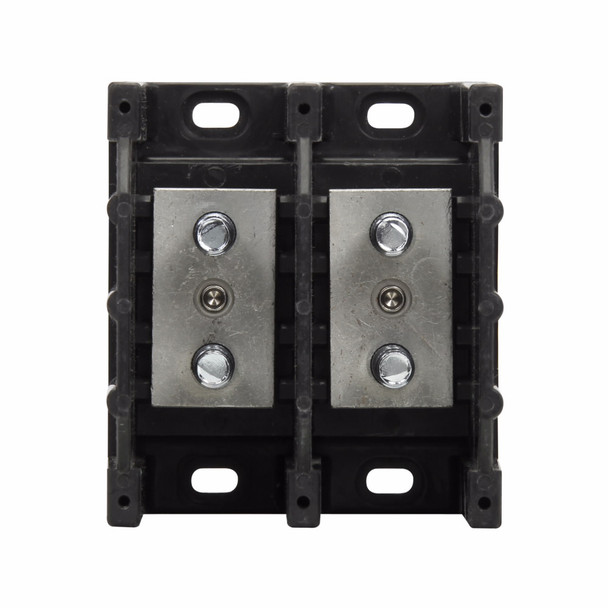

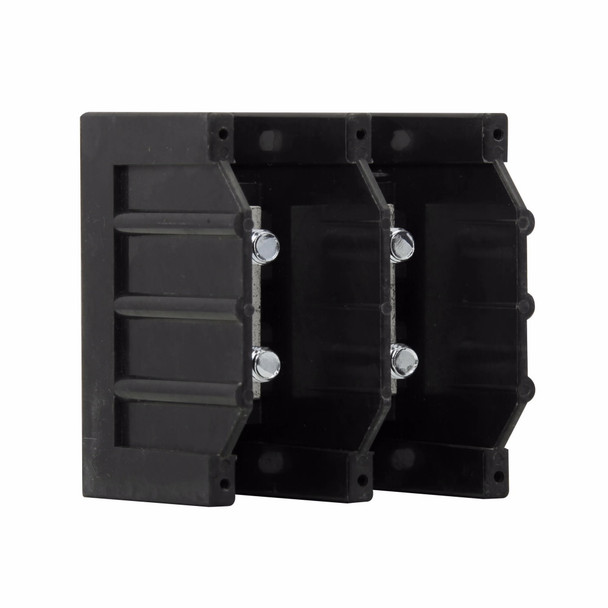

Bussmann 16390-2 Power Terminal Block
Bussmann Power Terminal Block, Barrier, Series: 163, 600 VAC/VDC, 250 A, 2 Pole, (1) 3/8-16 x 1-1/8 in Stud Primary Connections/Pole, (1) 3/8-16 x 1-1/8 in Stud Secondary Connection/Pole, 10 kA Short Circuit Current Rating, Aluminum/Thermoplastic, Tin Plated, Black, 3.6 in L x 4 in W x 3.32 in H
Additional Description: BUSS-16390-2 (N) POWER DISTRIBUTION BLOCK NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann series power terminal block, 600 Vac, 600 Vdc, 250A, Power terminal block, Two-pole, 3/8 In-16 TPI X 1-1/8 In Stud (Line/Load), SCCR: 10 kA, Black, Molded Thermoplastic Base, Tin-plated aluminum connector
Specifications
| UNSPSC | 39121629 |
|---|---|
| Amperage Rating | 250 |
| Amperage Rating | 250 A |
| Color | Black |
| Dimensions | 3.6 in L x 4 in W x 3.32 in H |
| Finish | Tin Plated |
| Material | Aluminum/Thermoplastic |
| Material | Thermoplastic |
| Number of Poles | 2 |
| Series | 163 |
| Short Circuit Current Rating (kA) | 10 |
| Short Circuit Current Rating (kA) | 10 kA |
| Type | Barrier |
| Type | Barrier Stud to Stud |
| Type | Barrier/Connector to Stud |
| Voltage Rating | 600 |
| Voltage Rating | 600 VAC/VDC |
| Wire Size | 3/8-16 x 1-1/8 in Stud |
