Description

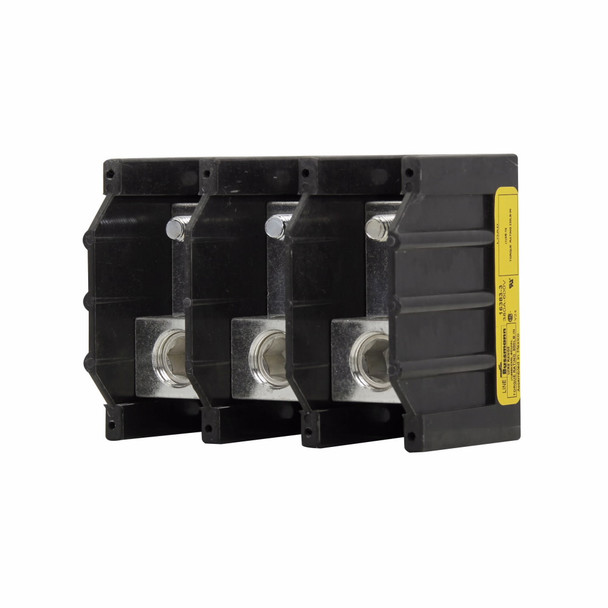

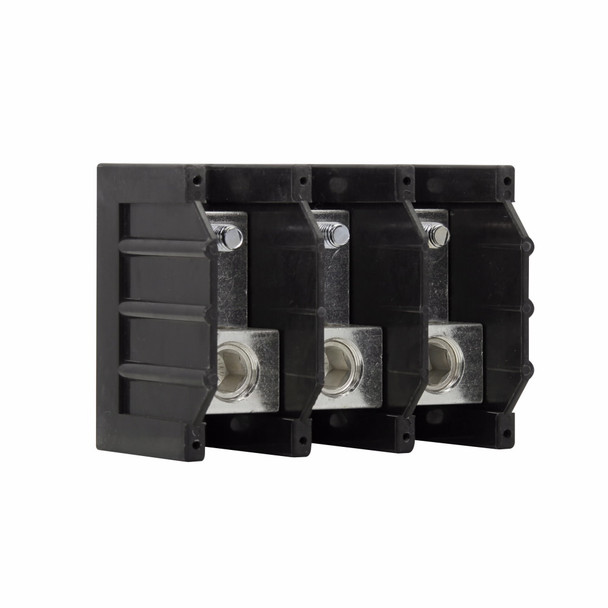

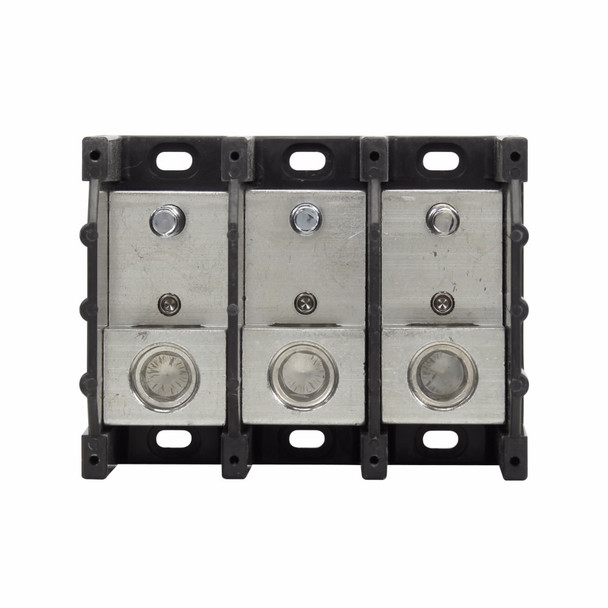

Bussmann 16383-3 Power Distribution Block
Bussmann Power Terminal Block, Barrier, Series: 163, 600 VAC/VDC, 380 A, 3 Pole, 1 Primary Connections/Pole, (1) 3/8-16 x 1 in Stud Secondary Connection/Pole, 6 AWG to 500 kcmil Cu/Al Line Wire, 10 kA Short Circuit Current Rating, Aluminum/Thermoplastic, Tin Plated, Black, 5.21 in L x 4 in W x 3.32 in H
Additional Description: BUSS-16383-3 POWER DISTRIBUTION BLOCK
Catalog Description: Eaton Bussmann series power terminal block, 600 Vac/dc maximum, 380 A, 10 kAIC, Series 163, Three-pole, Load: (1) 3/8 - 16 x 1 Stud, Black, Thermoplastic base, Tin-plated aluminum connector
Specifications
| UNSPSC | 39121410 |
|---|---|
| Amperage Rating | 380 |
| Amperage Rating | 380 A |
| Color | Black |
| Dimensions | 5.21 in L x 4 in W x 3.32 in H |
| Finish | Tin Plated |
| Material | Aluminum/Thermoplastic |
| Material | Thermoplastic |
| Number of Poles | 3 |
| Series | 163 |
| Short Circuit Current Rating (kA) | 10 |
| Short Circuit Current Rating (kA) | 10 kA |
| Type | Barrier |
| Type | Barrier Connector to Stud |
| Type | Barrier/Connector to Stud |
| Voltage Rating | 600 |
| Voltage Rating | 600 VAC/VDC |
| Wire Size | 6 AWG to 500 kcmil |
| Wire Size | 6 AWG to 500 kcmil Cu/Al Line |
