Description

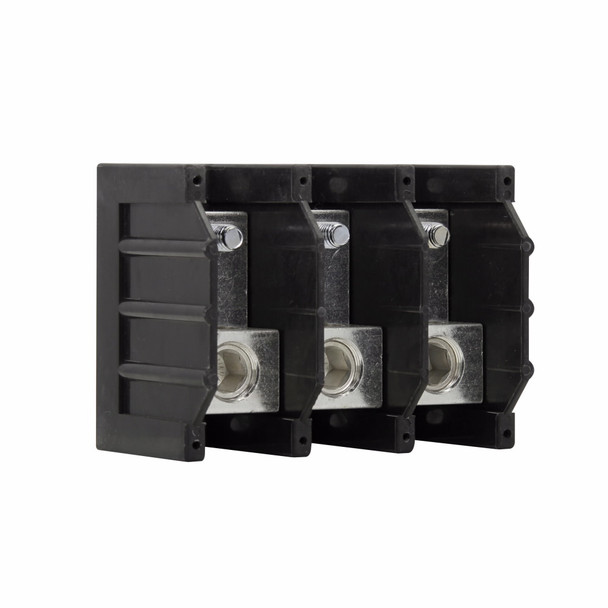

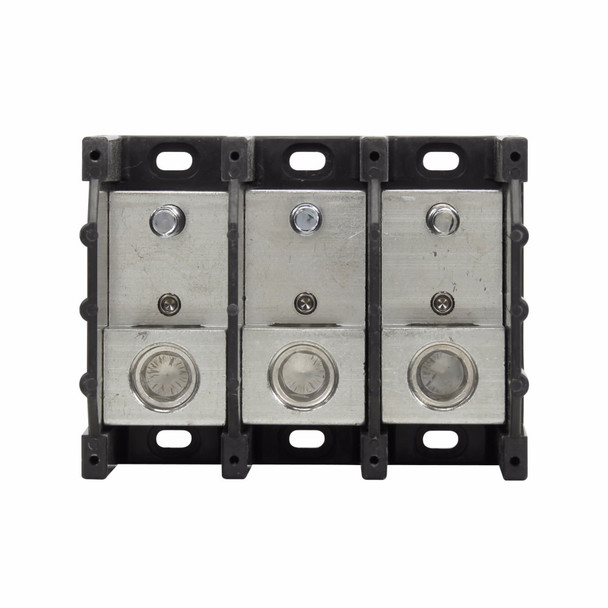

Bussmann 16383-3-M Power Terminal Block
Bussmann Magnum Power Terminal Block, Series: 163, 600 VAC/VDC, 380 A, 3 Pole, (1) Screw Primary Connections/Pole, (1) 3/8-16 x 1 in Stud Secondary Connection/Pole, 6 AWG to 500 kcmil Cu/Al Line/Load Wire, 10 kA Short Circuit Current Rating, Thermoplastic, Black, 5.21 in L x 4 in W x 3.32 in H
Additional Description: BUSS-16383-3-M POWER DISC. BLOCK
Catalog Description: Eaton Bussmann series power terminal block, Power terminal block - 16383-3-M
Specifications
| UNSPSC | 39121626 |
|---|---|
| Amperage Rating | 380 |
| Amperage Rating | 380 A |
| Color | Black |
| Dimensions | 5.21 in L x 4 in W x 3.32 in H |
| Finish | Tin Plated |
| Material | Thermoplastic |
| Number of Poles | 3 |
| Series | 163 |
| Short Circuit Current Rating (kA) | 10 |
| Short Circuit Current Rating (kA) | 10 kA |
| Type | 0 |
| Type | Connector to Stud |
| Voltage Rating | 600 |
| Voltage Rating | 600 VAC/VDC |
| Wire Size | 6 AWG to 500 kcmil |
| Wire Size | 6 AWG to 500 kcmil Cu/Al Line/Load |
