Description

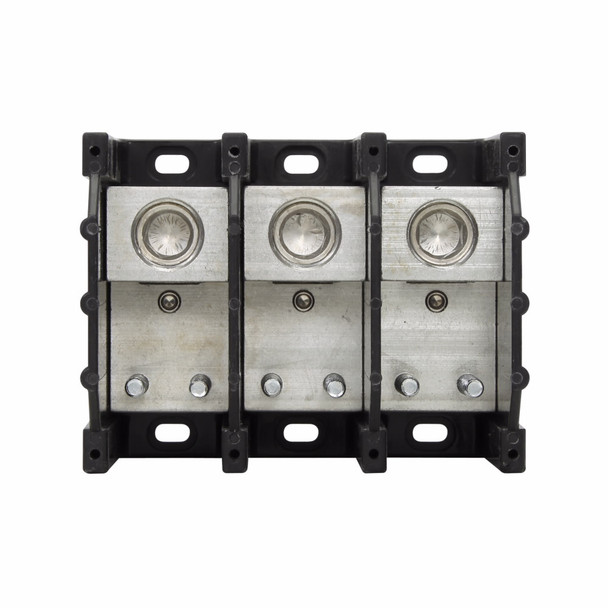

Bussmann 16378-3 Power Distribution Block
Bussmann Power Terminal Block, Barrier, Series: 163, 600 VAC/VDC, 380 A, 3 Pole, 1 Primary Connections/Pole, (2) 1/4-20 x 1 in Stud Secondary Connection/Pole, 6 AWG to 500 kcmil Cu/Al Line Wire, 10 kA Short Circuit Current Rating, Aluminum/Thermoplastic, Tin Plated, Black, 5.21 in L x 4 in W x 3.32 in H
Additional Description: BUSS-16378-3 (N) TERMINAL BLOCK NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann series power terminal block, 600 Vac, 600 Vdc, 380A, Power terminal block, Three-pole, (2) 1/4 In-20 TPI X 1 In Stud (Load), SCCR: 10 kA, Black, Molded Thermoplastic Base, Tin-plated aluminum connector
Specifications
| UNSPSC | 39121629 |
|---|---|
| Amperage Rating | 380 |
| Amperage Rating | 380 A |
| Color | Black |
| Dimensions | 5.21 in L x 4 in W x 3.32 in H |
| Finish | Tin Plated |
| Material | Aluminum/Thermoplastic |
| Material | Thermoplastic |
| Number of Poles | 3 |
| Series | 163 |
| Short Circuit Current Rating (kA) | 10 |
| Short Circuit Current Rating (kA) | 10 kA |
| Type | Barrier |
| Type | Barrier Connector to Stud |
| Type | Barrier/Connector to Stud |
| Voltage Rating | 600 |
| Voltage Rating | 600 VAC/VDC |
| Wire Size | 6 AWG to 500 kcmil |
| Wire Size | 6 AWG to 500 kcmil Cu/Al Line |
