Description

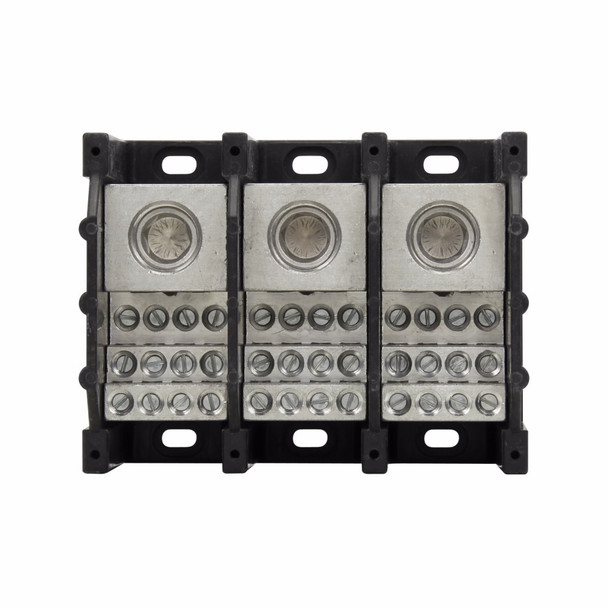

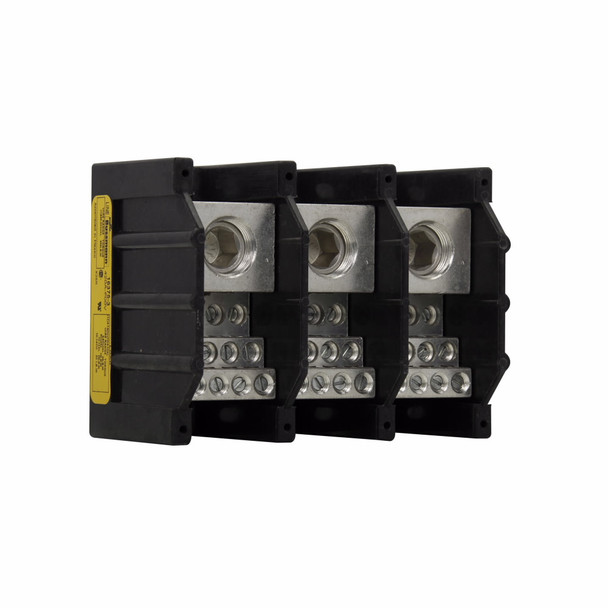

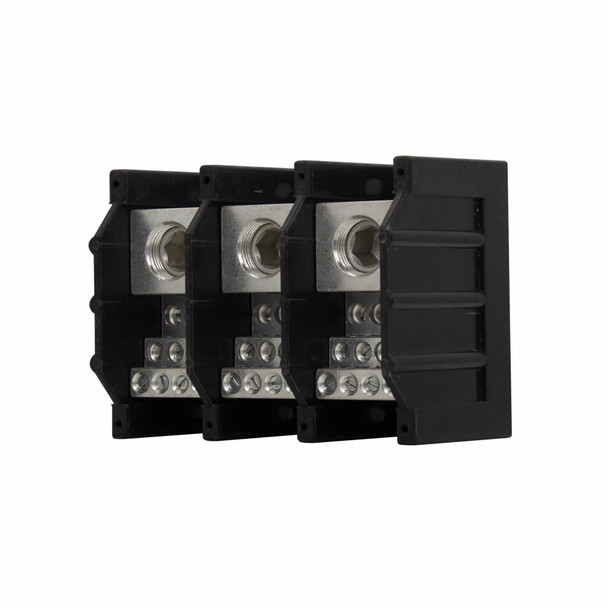

Bussmann 16375-3 Power Distribution Block
Bussmann Power Distribution Block, Barrier, Series: 163, 600 VAC/VDC, 420 A, 3 Pole, 1 Primary Connections/Pole, 12 Secondary Connection/Pole, 2 AWG to 600 kcmil Wire, 10 kA Short Circuit Current Rating, Aluminum/Thermoplastic, Tin Plated, Black, 5.21 in L x 4 in W x 3.32 in H
Additional Description: BUSS-16375-3 Power Distribution Block
Catalog Description: Eaton Bussmann series power distribution block, 600 Vac, 600 Vdc, 420 A, Three-pole, SCCR: 10 kAIC, Black, Molded Thermoplastic Base, Tin-plated aluminum connector
Specifications
| UNSPSC | 39121629 |
|---|---|
| Amperage Rating | 420 |
| Amperage Rating | 420 A |
| Color | Black |
| Dimensions | 5.21 in L x 4 in W x 3.32 in H |
| Finish | Tin Plated |
| Material | Aluminum/Thermoplastic |
| Material | Thermoplastic |
| Number of Poles | 3 |
| Series | 163 |
| Short Circuit Current Rating (kA) | 10 |
| Short Circuit Current Rating (kA) | 10 kA |
| Type | Barrier |
| Voltage Rating | 600 |
| Voltage Rating | 600 VAC/VDC |
| Wire Size | 2 AWG to 600 kcmil |
