Description

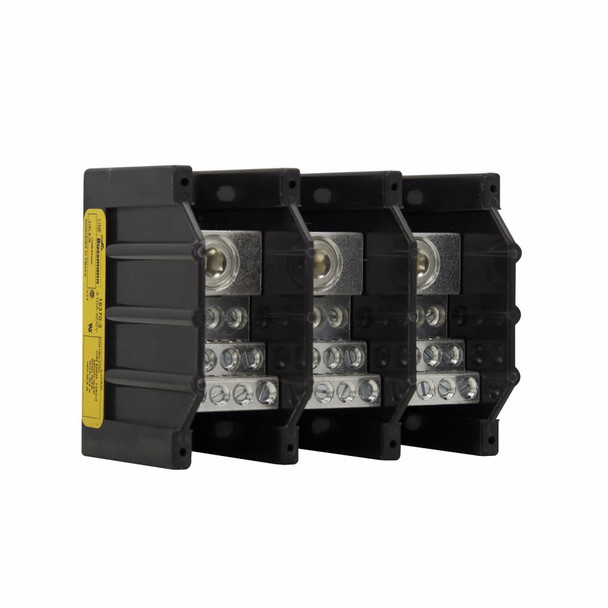

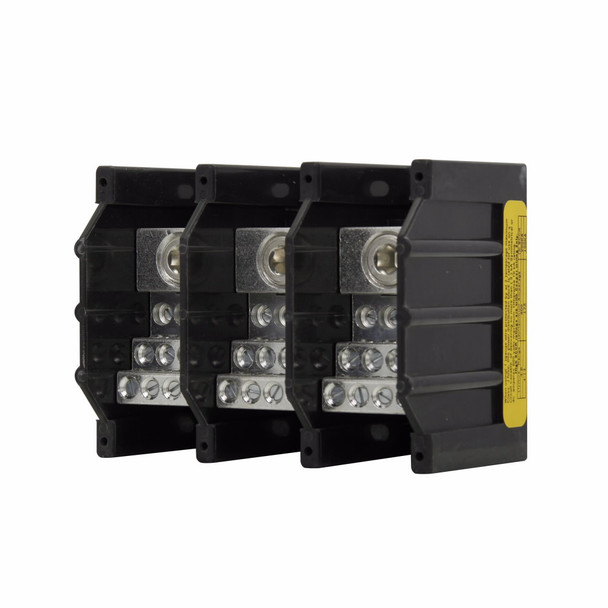

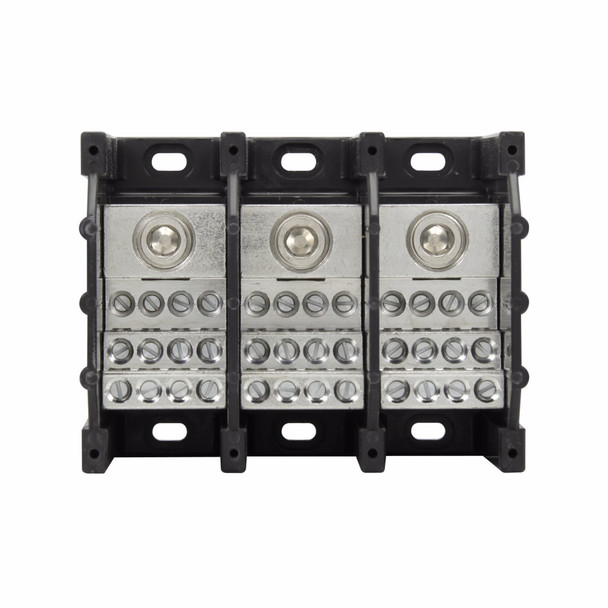

Bussmann 16370-3 Power Terminal Block
Bussmann Power Distribution Block, Barrier, Series: 163, 600 VAC/VDC, 310 A, 3 Pole, 1 Primary Connections/Pole, 12 Secondary Connection/Pole, 6 AWG to 350 kcmil Cu/AL Line, 14 to 4 AWG Cu, 12 to 4 AWG Al Load Wire, 100 kA Short Circuit Current Rating, Aluminum/Thermoplastic, Tin Plated, Black, 5.21 in L x 4 in W x 3.32 in H
Additional Description: BUSS-16370-3 POWER DIST. BLOCK 15PK
Catalog Description: Eaton Bussmann series power distribution block, 600 Vac, 600 Vdc, 310A, Power distribution block, Three-pole, SCCR: 100 kA, Black, Molded Thermoplastic Base, Tin-plated aluminum connector - 16370-3
Specifications
UNSPSC | 39121629 |
---|---|
Amperage Rating | 310 |
Amperage Rating | 310 A |
Color | Black |
Dimensions | 5.21 in L x 4 in W x 3.32 in H |
Finish | Tin Plated |
Material | Aluminum/Thermoplastic |
Material | Thermoplastic |
Number of Poles | 3 |
Series | 163 |
Short Circuit Current Rating (kA) | 100 |
Short Circuit Current Rating (kA) | 100 kA |
Type | Barrier |
Voltage Rating | 600 |
Voltage Rating | 600 VAC/VDC |
Wire Size | 6 AWG to 350 kcmil |
Wire Size | 6 AWG to 350 kcmil Cu/AL Line, 14 to 4 AWG Cu, 12 to 4 AWG Al Load |
