Description

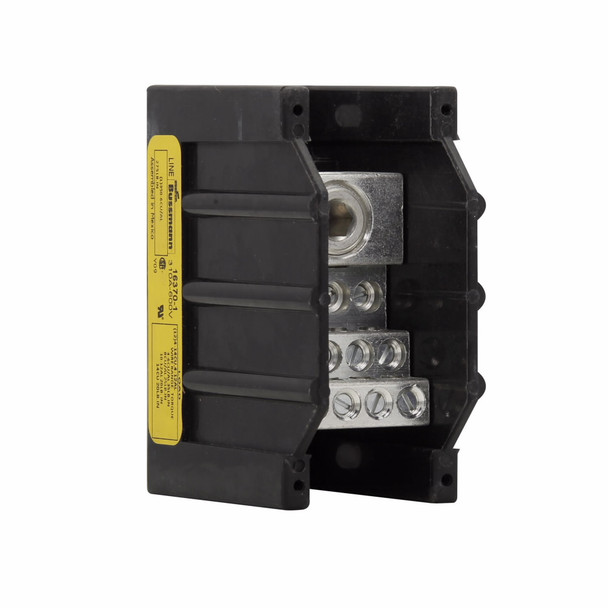

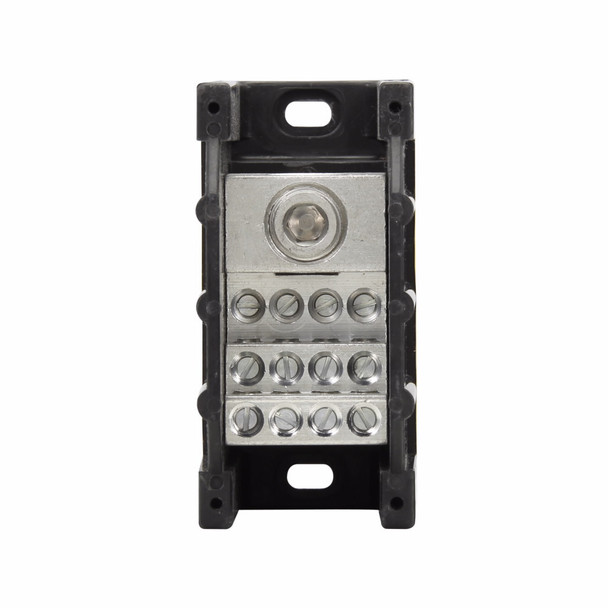

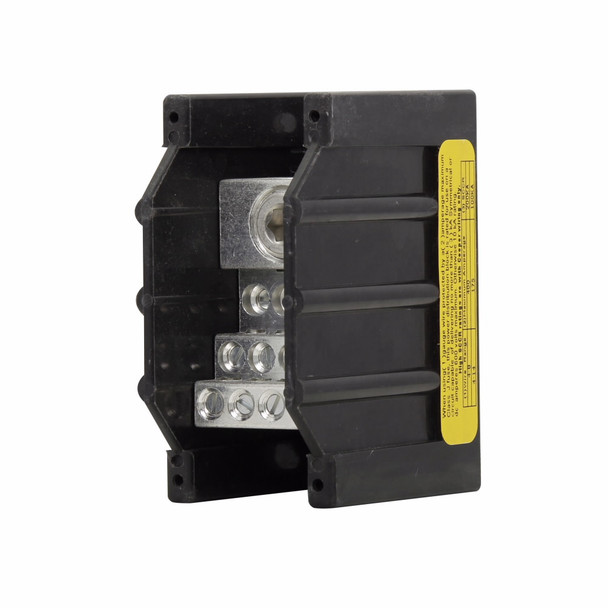

Bussmann 16370-1 Power Terminal Block
Bussmann Power Distribution Block, Barrier, Series: 163, 600 VAC/VDC, 310 A, 1 Pole, 1 Primary Connections/Pole, 12 Secondary Connection/Pole, 6 AWG to 350 kcmil Cu/Al Line, (12) 14 to 4 AWG Cu, 12 to 4 AWG Al Load Wire, 100 kA Short Circuit Current Rating, Aluminum/Thermoplastic, Tin Plated, Black, 1.98 in L x 4 in W x 3.32 in H
Additional Description: BUSS-16370-1 POWER DIST. BLOCK 24PK
Catalog Description: Eaton Bussmann series power distribution block, 600 Vac, 600 Vdc, 310 A, Single-pole, SCCR: 100 kA, Black, Molded Thermoplastic Base, Tin-plated aluminum connector
Specifications
| UNSPSC | 39121629 |
|---|---|
| Amperage Rating | 310 |
| Amperage Rating | 310 A |
| Color | Black |
| Dimensions | 1.98 in L x 4 in W x 3.32 in H |
| Finish | Tin Plated |
| Material | Aluminum/Thermoplastic |
| Material | Thermoplastic |
| Number of Poles | 1 |
| Series | 163 |
| Short Circuit Current Rating (kA) | 100 |
| Short Circuit Current Rating (kA) | 100 kA |
| Type | Barrier |
| Type | Barrier Splicer |
| Voltage Rating | 600 |
| Voltage Rating | 600 VAC/VDC |
| Wire Size | 6 AWG to 350 kcmil |
| Wire Size | 6 AWG to 350 kcmil Cu/Al Line, (12) 14 to 4 AWG Cu, 12 to 4 AWG Al Load |
| Wire Size | 6 AWG to 350 kcmil, 12 to 4 AWG |
