Description

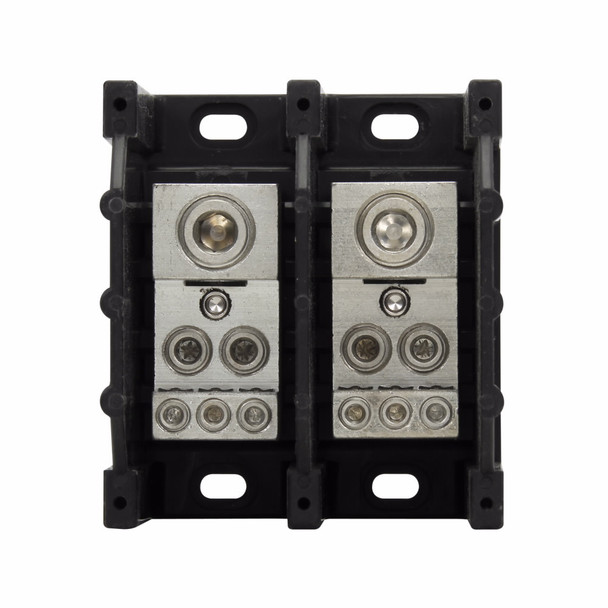

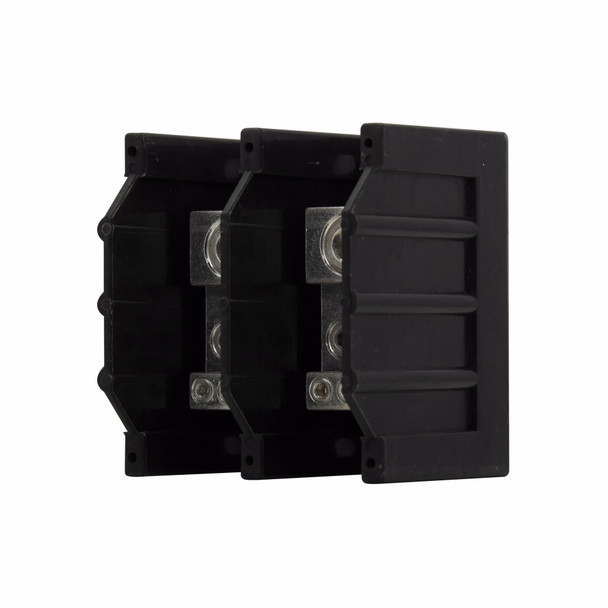

Bussmann 16332-2 Power Terminal Block
Bussmann Power Distribution Block, Barrier, Series: 163, 600 VAC/VDC, 310 A, 2 Pole, 1 Primary Connections/Pole, 5 Secondary Connection/Pole, 6 AWG to 350 kcmil Cu/Al Line, 14 to 2 AWG, 14 to 1/0 AWG Cu, 8 to 2 AWG, 8 to 1/0 AWG Al Load Wire, 10 kA Short Circuit Current Rating, Aluminum/Thermoplastic, Tin Plated, Black, 3.6 in L x 4 in W x 3.32 in H
Additional Description: BUSS-16332-2 TERMINAL BLOCK
Catalog Description: Eaton Bussmann series power distribution block, 600 Vac, 600 Vdc, 310A, Power distribution block, Two-pole, SCCR: 10 kA, Black, Molded Thermoplastic Base, Tin-plated aluminum connector - 16332-2
Specifications
| UNSPSC | 39121629 |
|---|---|
| Amperage Rating | 310 |
| Amperage Rating | 310 A |
| Color | Black |
| Dimensions | 3.6 in L x 4 in W x 3.32 in H |
| Finish | Tin Plated |
| Material | Aluminum/Thermoplastic |
| Material | Thermoplastic |
| Number of Poles | 2 |
| Series | 163 |
| Short Circuit Current Rating (kA) | 10 |
| Short Circuit Current Rating (kA) | 10 kA |
| Type | Barrier |
| Voltage Rating | 600 |
| Voltage Rating | 600 VAC/VDC |
| Wire Size | 6 AWG to 350 kcmil |
| Wire Size | 6 AWG to 350 kcmil Cu/Al Line, 14 to 2 AWG, 14 to 1/0 AWG Cu, 8 to 2 AWG, 8 to 1/0 AWG Al Load |
