Description

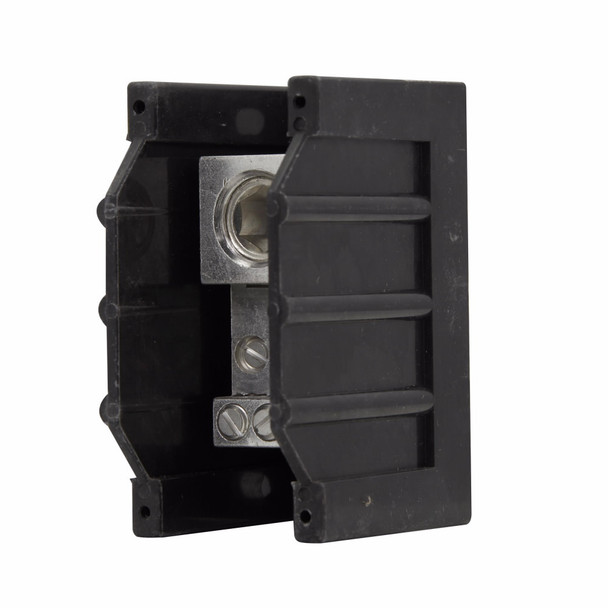

Bussmann 16330-1 Power Distribution Block
Bussmann Power Distribution Block, Barrier Splicer, Series: 163, 600 VAC/VDC, 380 A, 1 Pole, 1 Primary Connections/Pole, 6 Secondary Connection/Pole, 6 AWG to 500 kcmil Wire, 10 kA Short Circuit Current Rating, Aluminum/Thermoplastic, Tin Plated, Black, 1.98 in L x 4 in W x 3.32 in H
Additional Description: BUSS-16330-1 POWER DIST. BLOCK 24PK
Catalog Description: Eaton Bussmann series power distribution block, 600 Vac, 600 Vdc, 380A, Power distribution block, Single-pole, SCCR: 10 kA, Black, Molded Thermoplastic Base, Tin-plated aluminum connector
Specifications
| UNSPSC | 39121629 |
|---|---|
| Amperage Rating | 380 |
| Amperage Rating | 380 A |
| Color | Black |
| Dimensions | 1.98 in L x 4 in W x 3.32 in H |
| Finish | Tin Plated |
| Material | Aluminum/Thermoplastic |
| Material | Thermoplastic |
| Number of Poles | 1 |
| Series | 163 |
| Short Circuit Current Rating (kA) | 10 |
| Short Circuit Current Rating (kA) | 10 kA |
| Type | Barrier |
| Type | Barrier Splicer |
| Voltage Rating | 600 |
| Voltage Rating | 600 VAC/VDC |
| Wire Size | 6 AWG to 500 kcmil |
| Wire Size | 6 AWG to 500 kcmil, 14 to 2 AWG, 12 to 2 AWG |
