Description

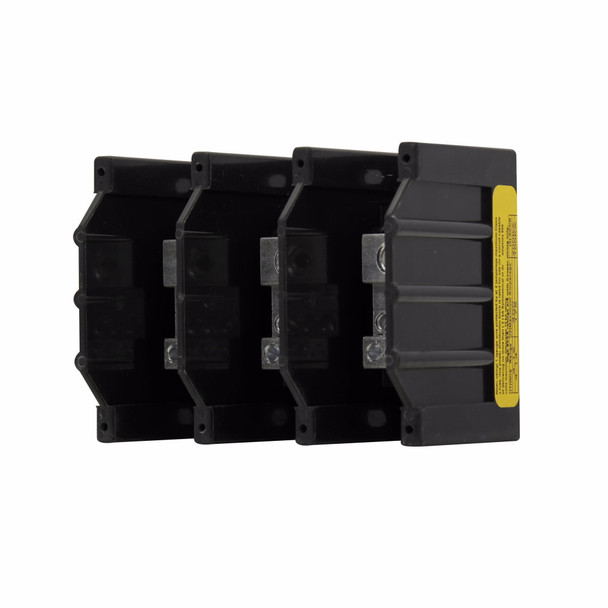

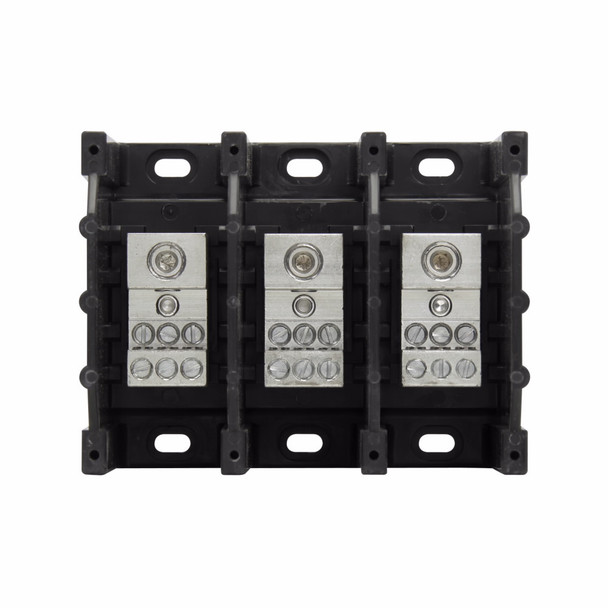

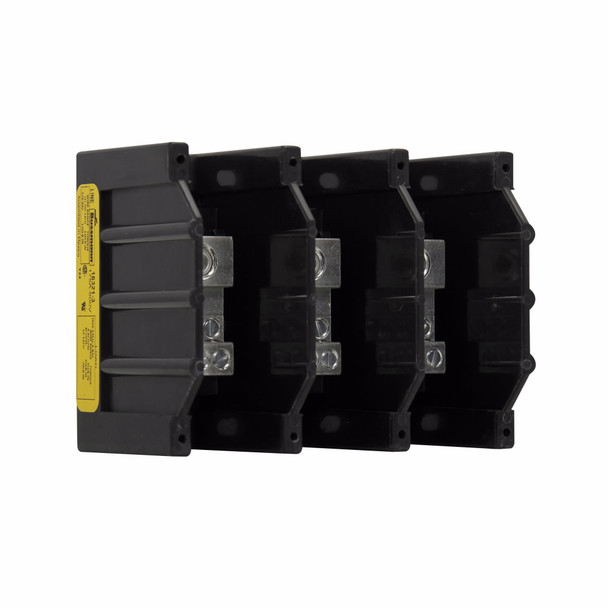

Bussmann 16321-3 Power Terminal Block
Bussmann Magnum Power Distribution Block, Barrier, Series: 163, 600 VAC/VDC, 175 A, 3 Pole, (1) Screw Primary Connections/Pole, (6) Screw Secondary Connection/Pole, 14 to 2/0 AWG Cu, 8 to 2/0 AWG Al Line, (6) 14 to 4 AWG Cu, 8 to 4 AWG Al Load Wire, 100 kA Short Circuit Current, Aluminum/Thermoplastic, Tin Plated, Black, 5.21 in L x 4 in W x 3.32 in H
Additional Description: BUSS-16321-3 POWER DIST. BLOCK 15PK
Catalog Description: Eaton Bussmann series power distribution block, 600 Vac, 600 Vdc, 175 A, Three-pole, SCCR: 100 kAIC, Black, Molded Thermoplastic Base, Tin-plated aluminum connector
Specifications
| UNSPSC | 39121629 |
|---|---|
| Amperage Rating | 175 |
| Amperage Rating | 175 A |
| Color | Black |
| Dimensions | 5.21 in L x 4 in W x 3.32 in H |
| Finish | Tin Plated |
| Material | Aluminum/Thermoplastic |
| Material | Thermoplastic |
| Number of Poles | 3 |
| Series | 163 |
| Short Circuit Current Rating (kA) | 100 |
| Short Circuit Current Rating (kA) | 100 kA |
| Type | Barrier |
| Type | Barrier Terminal |
| Voltage Rating | 600 |
| Voltage Rating | 600 VAC/VDC |
| Wire Size | 14 to 2/0 AWG Cu, 8 to 2/0 AWG Al Line, (6) 14 to 4 AWG Cu, 8 to 4 AWG Al Load |
| Wire Size | 14 to 2/0 AWG, 8 to 2/0 AWG |
