Description

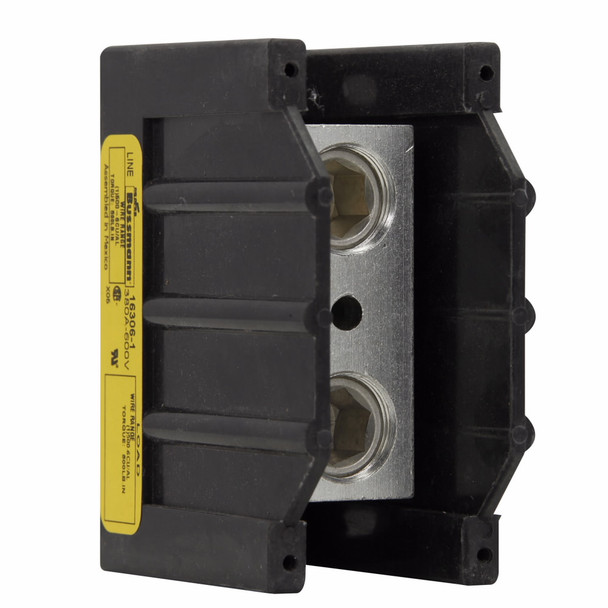

Bussmann 16306-1 Power Terminal Block
Bussmann Power Splicer Block, Barrier Molded, Series: 163, 600 VAC/VDC, 380 A, 1 Pole, 1 Primary Connections/Pole, 1 Secondary Connection/Pole, (1) 6 AWG to 500 kcmil Cu/Al Line/Load Wire, 10 kA Short Circuit Current Rating, Aluminum/Thermoplastic, Tin Plated, Black, 1.98 in L x 4 in W x 3.32 in H
Additional Description: BUSS-16306-1 (N) POWER DISTRIBUTION BLOCK NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann series power splicer block, 600 Vac, 600 Vdc, 380A, Power splicer block, Single-pole, Splicer, SCCR: 10 kA, Black, Molded Thermoplastic Base, Tin-plated aluminum connector
Specifications
| UNSPSC | 39121629 |
|---|---|
| Amperage Rating | 380 |
| Amperage Rating | 380 A |
| Color | Black |
| Dimensions | 1.98 in L x 4 in W x 3.32 in H |
| Finish | Tin Plated |
| Material | Aluminum/Thermoplastic |
| Material | Thermoplastic |
| Number of Poles | 1 |
| Series | 163 |
| Short Circuit Current Rating (kA) | 10 |
| Short Circuit Current Rating (kA) | 10 kA |
| Type | Barrier Molded |
| Type | Barrier Splicer |
| Type | Splicer |
| Voltage Rating | 600 |
| Voltage Rating | 600 VAC/VDC |
| Wire Size | (1) 6 AWG to 500 kcmil Cu/Al Line/Load |
| Wire Size | 6 AWG to 500 kcmil |
