Description

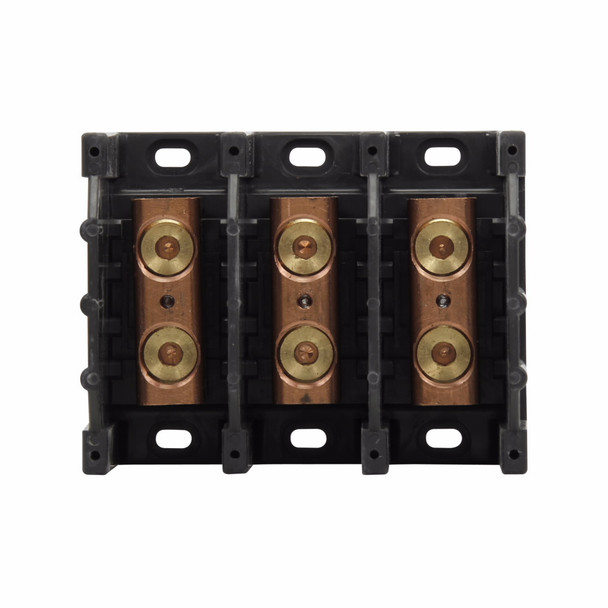

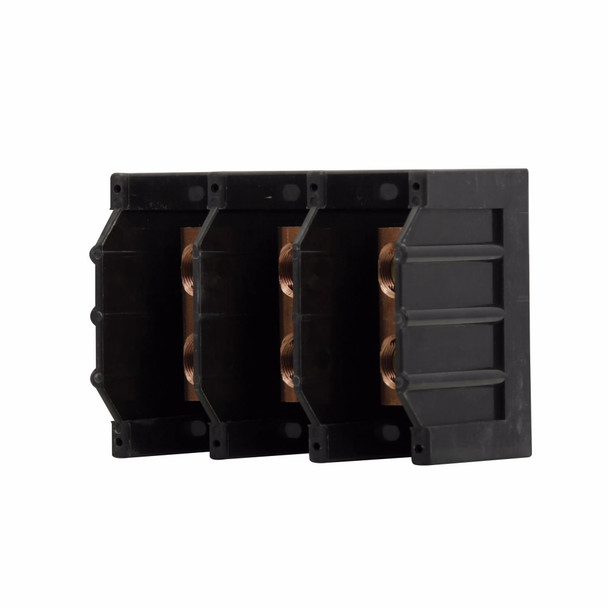

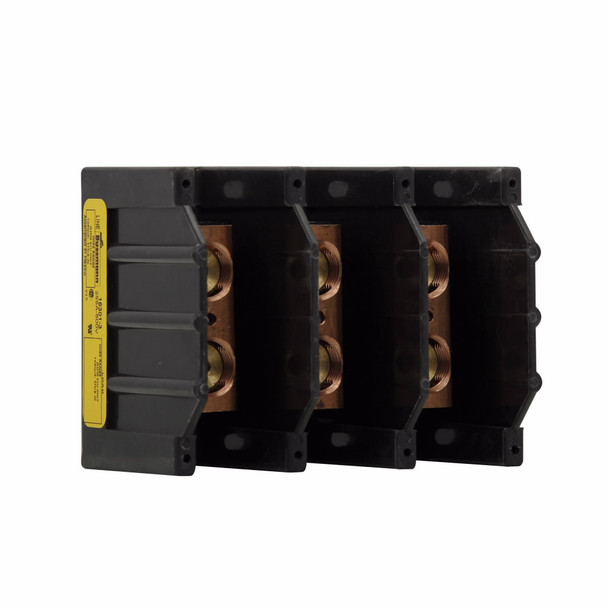

Bussmann 16301-3 Power Terminal Block
Bussmann Power Splicer Block, Barrier, Series: 163, 600 VAC/VDC, 255 A, 3 Pole, 6 AWG to 250 kcmil Cu Line/Load Wire, 10 kA Short Circuit Current, Aluminum/Thermoplastic, Tin Plated, Black, 5.21 in L x 4 in W x 3.32 in H
Additional Description: BUSS-16301-3 BUSS TERMINAL BLOCK
Catalog Description: Eaton Bussmann series power splicer block, 600 Vac, 600 Vdc, 255 A, Three-pole, SCCR: 10 kA, Black, Molded Thermoplastic Base, Tin-plated aluminum connector
Specifications
| UNSPSC | 39121629 |
|---|---|
| Amperage Rating | 255 |
| Amperage Rating | 255 A |
| Color | Black |
| Dimensions | 5.21 in L x 4 in W x 3.32 in H |
| Finish | Tin Plated |
| Material | Aluminum/Thermoplastic |
| Material | Thermoplastic |
| Number of Poles | 3 |
| Series | 163 |
| Short Circuit Current Rating (kA) | 10 |
| Short Circuit Current Rating (kA) | 10 kA |
| Terminal Type | Splicer/Screw |
| Type | Barrier |
| Type | Barrier Molded |
| Type | Barrier/Splicer |
| Voltage Rating | 600 |
| Voltage Rating | 600 VAC/VDC |
| Wire Size | 6 AWG to 250 kcmil |
| Wire Size | 6 AWG to 250 kcmil Cu Line/Load |
