Description

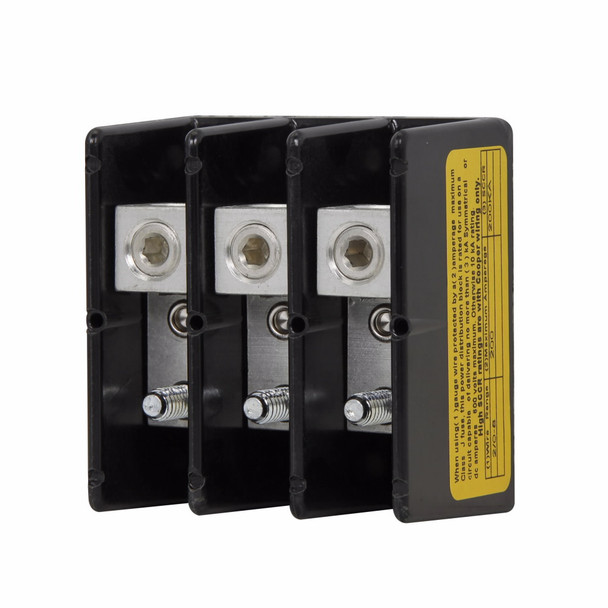

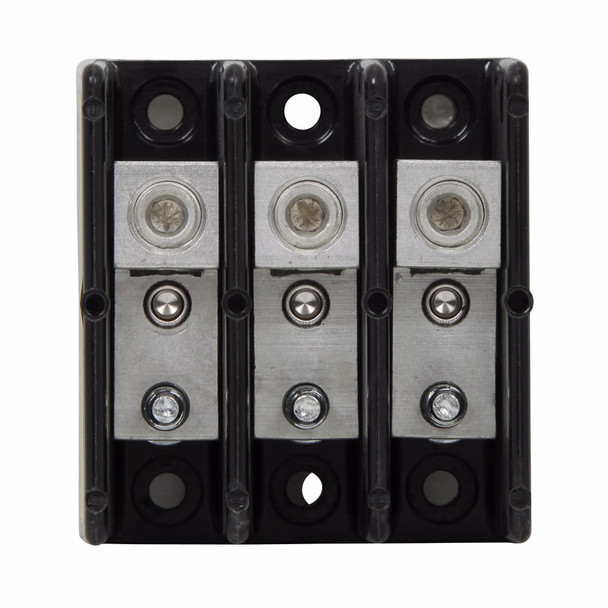

Bussmann 16280-3 Power Terminal Block
Bussmann Power Terminal Block, Barrier, Series: 162, 600 VAC/VDC, 175 A, 3 Pole, 1 Primary Connections/Pole, (1) 1/4-20 x 3/4 in Stud Secondary Connection/Pole, 14 to 2/0 AWG Cu/Al Line Wire, 200 kA Short Circuit Current Rating, Aluminum/Thermoplastic, Tin Plated, Black, 2.7 in L x 2.88 in W x 1.75 in H
Additional Description: BUSS-16280-3 POWER DISTRIBUTION BLOCK
Catalog Description: Eaton Bussmann series power terminal block, 600 Vac, 600 Vdc, 175 A, Three-pole, 1/4 Inches-20 TPI X 3/4 In Stud (Load), SCCR: 200 kA, Black, Molded Thermoplastic Base, Tin-plated aluminum connector
Specifications
| UNSPSC | 39121629 |
|---|---|
| Amperage Rating | 175 |
| Amperage Rating | 175 A |
| Color | Black |
| Dimensions | 2.7 in L x 2.88 in W x 1.75 in H |
| Finish | Tin Plated |
| Material | Aluminum/Thermoplastic |
| Material | Thermoplastic |
| Number of Poles | 3 |
| Series | 162 |
| Short Circuit Current Rating (kA) | 200 |
| Short Circuit Current Rating (kA) | 200 kA |
| Type | Barrier |
| Type | Connector to Stud |
| Voltage Rating | 600 |
| Voltage Rating | 600 VAC/VDC |
| Wire Size | 14 to 2/0 |
| Wire Size | 14 to 2/0 AWG Cu/Al Line |
