Description

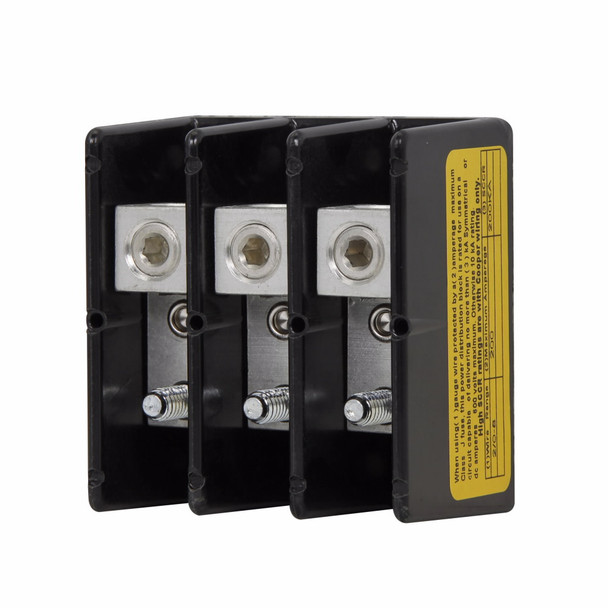

Bussmann 16280-3-M Power Distribution Terminal Block
Bussmann Power Terminal Block, Series: 162, 600 VAC/VDC, 175 A, 3 Pole, (1) 1/4-20 x 3/4 in Stud Secondary Connection/Pole, 14 to 2/0 AWG Cu/Al Line Wire, 200 kA Short Circuit Current Rating, Thermoplastic, Black, 2.84 in L x 1.69 in W x 2.62 in H
Additional Description: BUSS-16280-3-M POWER DISC. BLOCK
Catalog Description: Eaton Bussmann series power terminal block, Power terminal block, Three-pole - 16280-3-M
Specifications
| UNSPSC | 39121629 |
|---|---|
| Amperage Rating | 175 |
| Amperage Rating | 175 A |
| Color | Black |
| Dimensions | 2.84 in L x 1.69 in W x 2.62 in H |
| Material | Thermoplastic |
| Number of Poles | 3 |
| Series | 162 |
| Short Circuit Current Rating (kA) | 200 |
| Short Circuit Current Rating (kA) | 200 kA |
| Voltage Rating | 600 |
| Voltage Rating | 600 VAC/VDC |
| Wire Size | 14 to 2/0 AWG Cu/Al Line |
| Wire Size | 14 to 2/0 AWG Cu/Al Line, 1/4-20 x 3/4 in Stud Load |
