Description

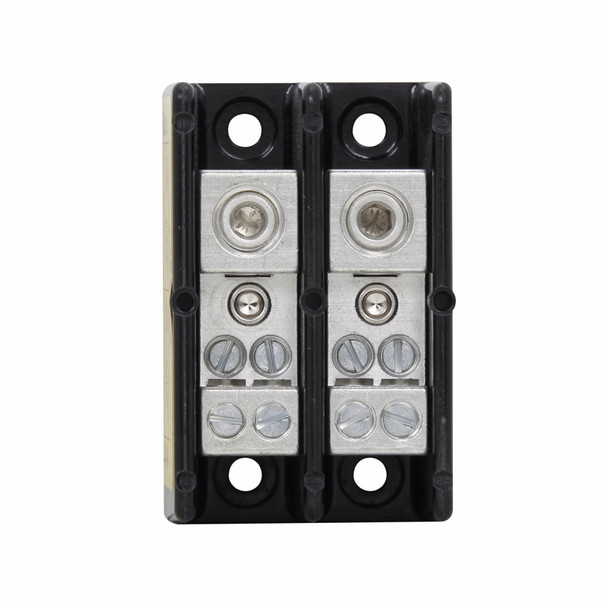

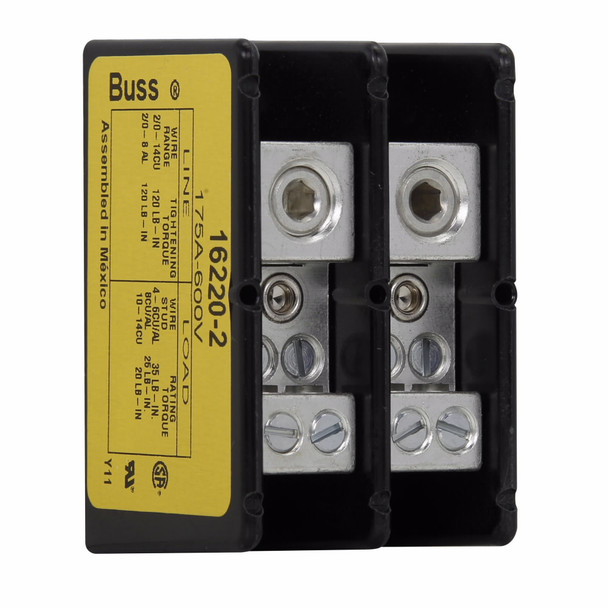

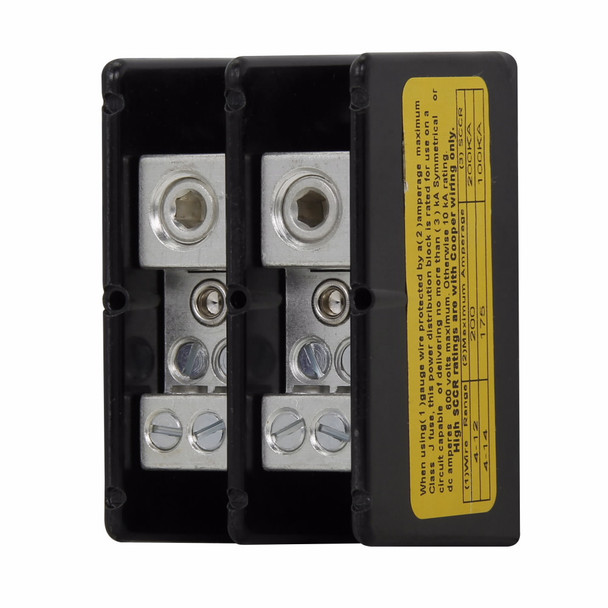

Bussmann 16220-2 Power Terminal Block
Bussmann Magnum Power Distribution Block, Barrier, Series: 162, 600 VAC/VDC, 175 A, 2 Pole, (2) 14 to 2/0 AWG Cu, 8 to 2/0 AWG Al Line, (6) 14 to 4 AWG Cu, 8 to 4 AWG Al Load Wire, 10 kA Short Circuit Current Rating, Thermoplastic, Black, 1.88 in L x 2.88 in W x 1.75 in H
Additional Description: BUSS-16220-2 BUSS BLCK WAS PDA20104042
Catalog Description: Eaton Bussmann series power distribution block, 600 Vac, 600 Vdc, 175 A, Two-pole, SCCR: 10 kAIC, Black, Molded Thermoplastic
Specifications
| UNSPSC | 39121629 |
|---|---|
| Amperage Rating | 175 |
| Amperage Rating | 175 A |
| Color | Black |
| Dimensions | 1.88 in L x 2.88 in W x 1.75 in H |
| Finish | Tin Plated |
| Material | Thermoplastic |
| Number of Poles | 2 |
| Series | 162 |
| Short Circuit Current Rating (kA) | 10 |
| Short Circuit Current Rating (kA) | 10 kA |
| Terminal Type | Splicer/Screw |
| Type | Barrier |
| Type | Molded |
| Voltage Rating | 600 |
| Voltage Rating | 600 VAC/VDC |
| Wire Size | (2) 14 to 2/0 AWG Cu, 8 to 2/0 AWG Al Line, (6) 14 to 4 AWG Cu, 8 to 4 AWG Al Load |
| Wire Size | 14 to 2/0 AWG, 8 to 2/0 AWG |
| Wire Size | 14 to 2/0 AWG, 8 to 2/0 AWG, 14 to 4 AWG, 8 to 4 AWG |
