Description

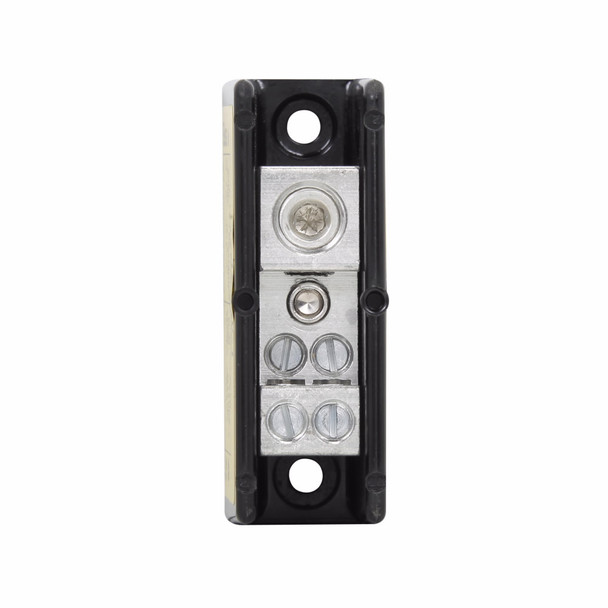

Bussmann 16220-1 Power Distribution Block
Bussmann Power Distribution Block, Barrier Standard, Series: 162, 600 VAC/VDC, 175 A, 1 Pole, 1 Primary Connections/Pole, 4 Secondary Connection/Pole, 14 to 2/0 AWG Cu, 8 to 2/0 AWG Al Line, (4) 14 to 4 AWG Cu, 8 to 4 AWG Al Load Wire, 200 kA Short Circuit Current Rating, Thermoplastic, Black, 1.07 in L x 2.88 in W x 1.75 in H
Additional Description: BUSS-16220-1 POWER TERMINAL BLOCK 48PK
Catalog Description: Eaton Bussmann series power distribution block, Flammability Rating UL 94-V0, 600 Vac, 600 Vdc, 175 A, Single-pole, Black, Molded Thermoplastic
Specifications
| UNSPSC | 39121629 |
|---|---|
| Amperage Rating | 175 |
| Amperage Rating | 175 A |
| Color | Black |
| Dimensions | 1.07 in L x 2.88 in W x 1.75 in H |
| Finish | Tin Plated |
| Material | Thermoplastic |
| Number of Poles | 1 |
| Series | 162 |
| Short Circuit Current Rating (kA) | 10 |
| Short Circuit Current Rating (kA) | 200 |
| Short Circuit Current Rating (kA) | 200 kA |
| Type | Barrier Splicer Standard |
| Type | Barrier Standard |
| Type | Barrier/Standard |
| Voltage Rating | 600 |
| Voltage Rating | 600 VAC/VDC |
| Wire Size | 14 to 2/0 |
| Wire Size | 14 to 2/0 AWG Cu, 8 to 2/0 AWG Al Line, (4) 14 to 4 AWG Cu, 8 to 4 AWG Al Load |
| Wire Size | 14 to 2/0 AWG, 8 to 2/0 AWG |
