Description

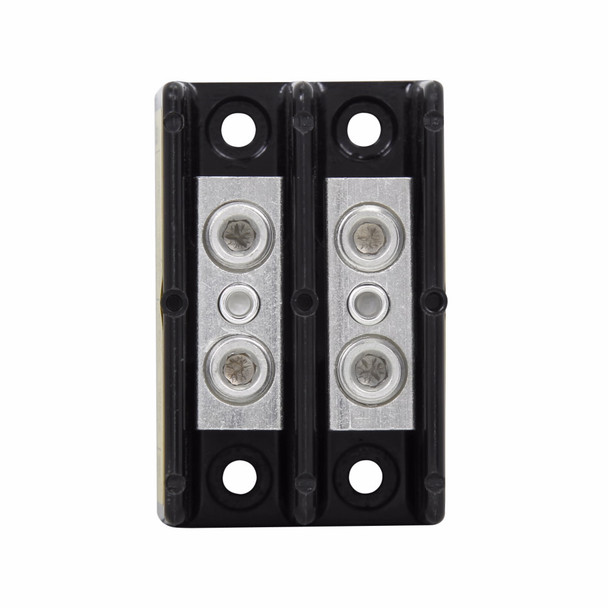

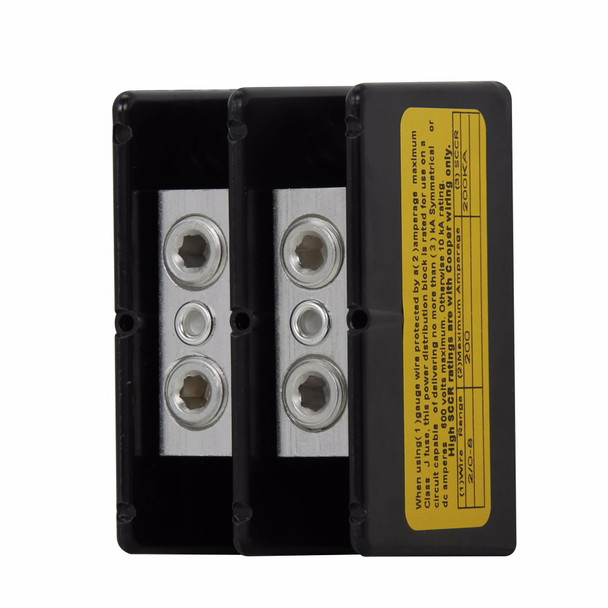

Bussmann 16204-2 Power Terminal Block
Bussmann Power Splicer Block, Barrier, Series: 162, 600 VAC/VDC, 175 A, 2 Pole, 8 to 2/0 AWG Cu/Al Line/Load Wire, 200 kA Short Circuit Current, Aluminum/Thermoplastic, Tin Plated, Black, 1.88 in L x 2.88 in W x 1.75 in H
Additional Description: BUSS-16204-2 BUSS POWER BLOCK
Catalog Description: Eaton Bussmann series power splicer block, 600 Vac, 600 Vdc, 175 A, Two-pole, Splicer, SCCR: 200 kA, Black, Molded Thermoplastic Base, Tin-plated aluminum connector
Specifications
| UNSPSC | 39121629 |
|---|---|
| Amperage Rating | 175 |
| Amperage Rating | 175 A |
| Color | Black |
| Dimensions | 1.88 in L x 2.88 in W x 1.75 in H |
| Finish | Tin Plated |
| Material | Aluminum/Thermoplastic |
| Material | Thermoplastic |
| Number of Poles | 2 |
| Series | 162 |
| Short Circuit Current Rating (kA) | 200 |
| Short Circuit Current Rating (kA) | 200 kA |
| Type | Barrier |
| Type | Barrier Splicer |
| Type | Barrier/Splicer |
| Voltage Rating | 600 |
| Voltage Rating | 600 VAC/VDC |
| Wire Size | 8 to 2/0 |
| Wire Size | 8 to 2/0 AWG Cu/Al Line/Load |
