Description

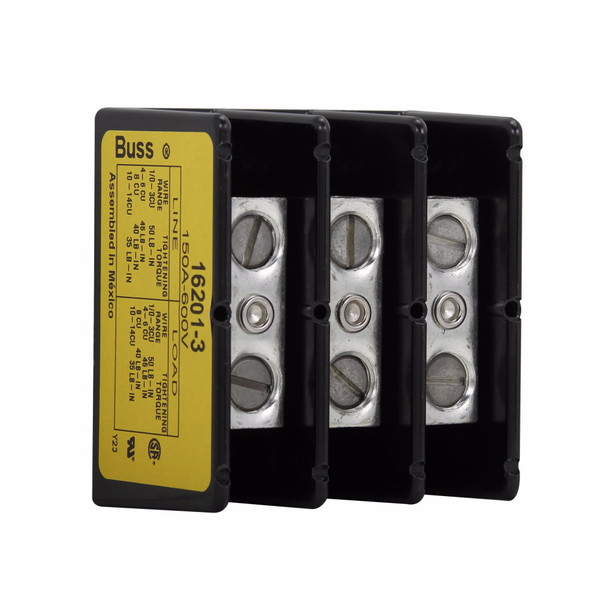

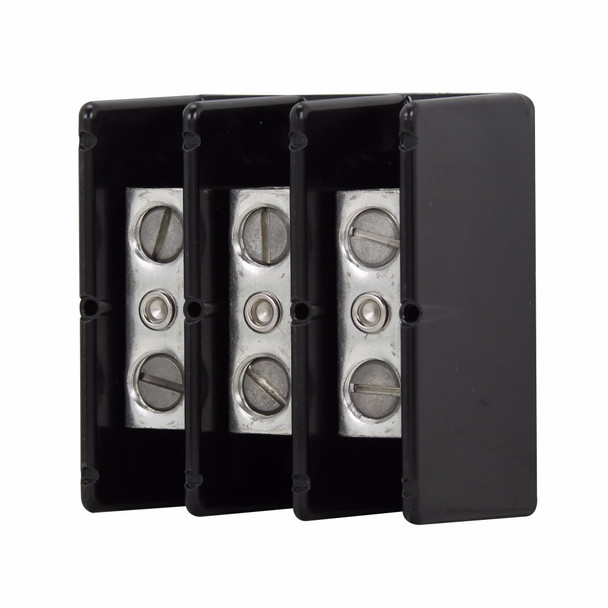

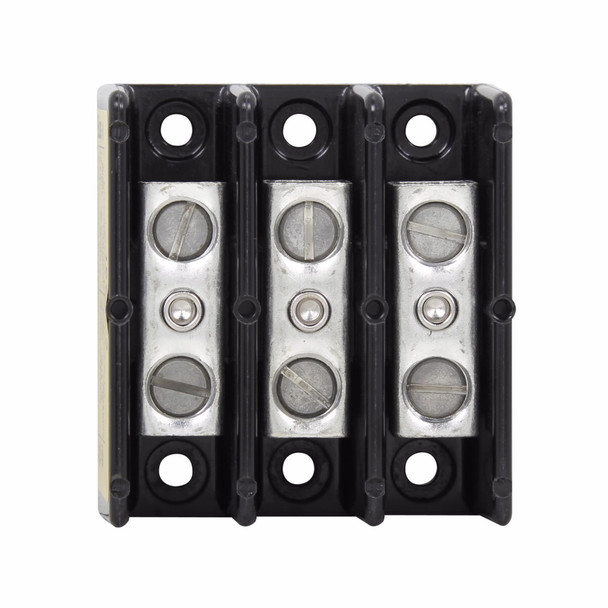

Bussmann 16201-3 Power Distribution Block
Bussmann Power Splicer Block, Barrier, Series: 162, 600 VAC/VDC, 150 A, 3 Pole, 14 to 1/0 AWG Cu Line/Load Wire, 10 kA Short Circuit Current Rating, Aluminum/Thermoplastic, Tin Plated, Black, 2.7 in L x 2.88 in W x 1.75 in H
Additional Description: BUSS-16201-3 BUSS POWER BLOCK
Catalog Description: Eaton Bussmann series power splicer block, 600 Vac, 600 Vdc, 150 A, Three-pole, SCCR: 10 kA, Black, Molded Thermoplastic Base, Tin-plated aluminum connector
Specifications
| UNSPSC | 39121629 |
|---|---|
| Amperage Rating | 150 |
| Amperage Rating | 150 A |
| Color | Black |
| Dimensions | 2.7 in L x 2.88 in W x 1.75 in H |
| Finish | Tin Plated |
| Material | Aluminum/Thermoplastic |
| Material | Thermoplastic |
| Number of Poles | 3 |
| Series | 162 |
| Short Circuit Current Rating (kA) | 10 |
| Short Circuit Current Rating (kA) | 10 kA |
| Type | Barrier |
| Type | Barrier Splicer |
| Type | Barrier/Splicer |
| Voltage Rating | 600 |
| Voltage Rating | 600 VAC/VDC |
| Wire Size | 14 to 1/0 |
| Wire Size | 14 to 1/0 AWG Cu Line/Load |
