Description

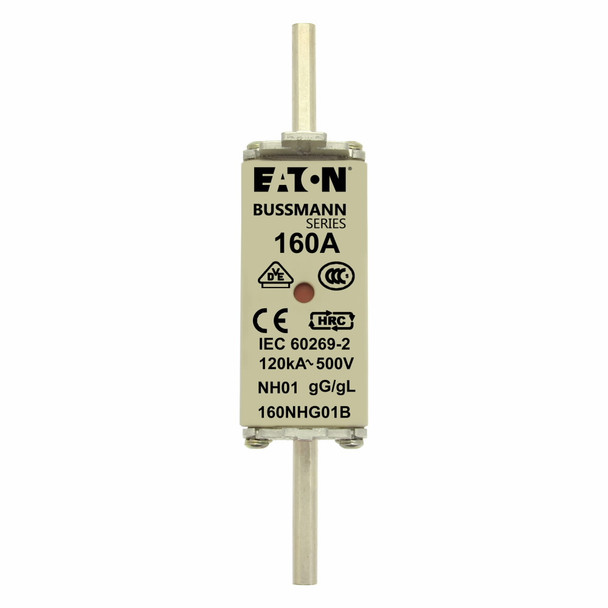

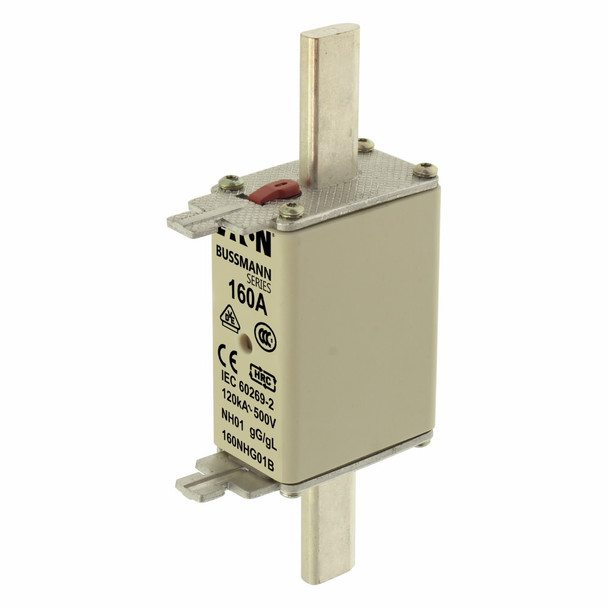

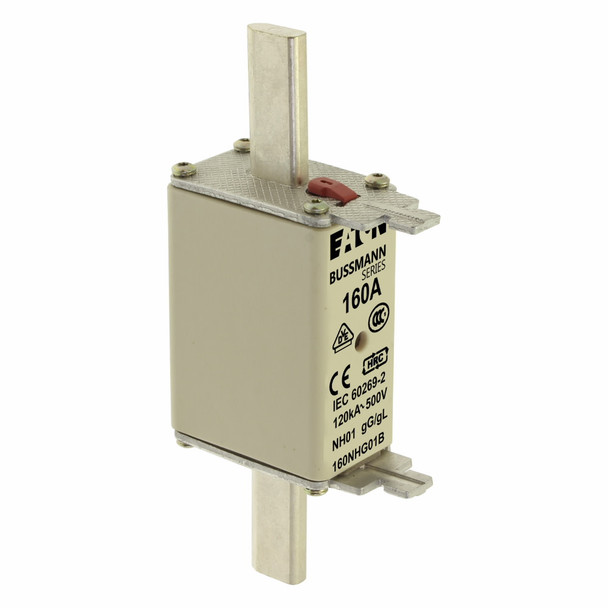

Bussmann 160NHG01B Fuse Link
Bussmann NH Fuse Link, Size 01 Dual Indicator Low Voltage, Series: NHG, 500 V, 160 A, 45 to 62 Hz Frequency, Rated Breaking Capacity: 120 kA, Holder Mounting, For Use With: Class C gG/gL Fuse, Ceramic
Additional Description: BUSS-160NHG01B NH FUSE 160A 500V GG/GL SIZE 01
Catalog Description: Eaton Bussmann series low voltage NH Fuse, Live gripping lug, 500V, 160A, 120 kAIC, Combination fuse status indicator, Blade end connection, Class C gL/gG, Square-body with knife blade contact, Metal plated copper contact plate-160NHG01B
Specifications
| UNSPSC | 39121626 |
|---|---|
| Amperage Rating | 160 |
| Amperage Rating | 160 A |
| Dimensions | 29.55 mm D x 135 mm H |
| Frequency Rating | 45 to 62 |
| Frequency Rating | 45 to 62 Hz |
| Material | Ceramic |
| Mounting type | Holder |
| Rated Breaking Capacity | 120 |
| Rated Breaking Capacity | 120 kA |
| Series | NHG |
| Suitable For Use With | Class C gG/gL Fuse |
| Type | Size 01 Dual Indicator Low Voltage |
| Voltage Rating | 500 |
| Voltage Rating | 500 V |
