Description

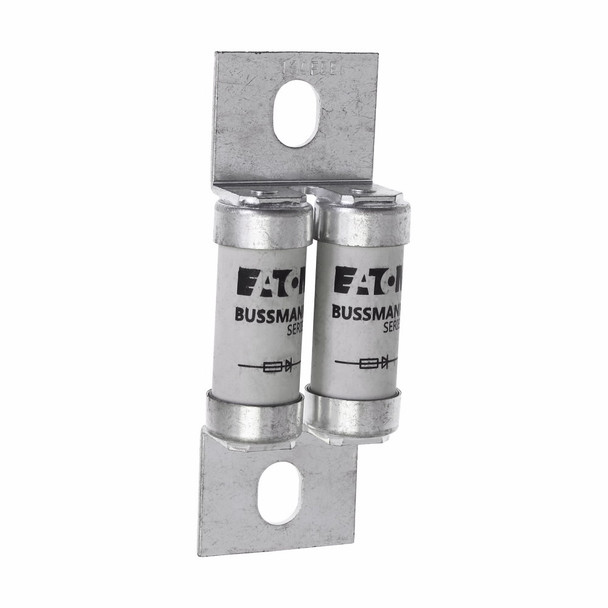

Bussmann 160FEE High Speed Fuse
Bussmann High Speed Fuse, British Standard, Series: FEE, Non-Indicating, 160 A, 690 V, 200 kA Interrupt, Class: AR, Blade End Terminal, Stud Mounting, Cartridge Body, 94 mm L x 37 mm W x 19 mm H Body
Additional Description: BUSS-160FEE 160A 690V AC TYPE T FUSE PROTECTION FUSE - FEE 660 VAC 450 VDC BS:88
Catalog Description: Eaton Bussmann series high speed British standard fuse, Double barrel, 160A, 690 VAC/500 VDC (IEC), 700 VAC/500 VDC (UL), Class aR, Breaking capacity 200 kA RMS Sym.HSBS, 50 kA DC at 500 VDC
Specifications
| UNSPSC | 39121625 |
|---|---|
| Amperage Rating | 160 |
| Amperage Rating | 160 A |
| Body Type | Cartridge |
| Class | AR |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 200 |
| Interrupt Rating | 200 kA |
| Interrupt Rating | 50/200 |
| Mounting type | Stud |
| Series | FEE |
| Terminal Type | Blade |
| Terminal Type | Blade End |
| Type | British Standard |
| Type | British Style |
| Type | Type FEE British BS88 Standard |
| Voltage Rating | 690 V |
| Voltage Rating | 690 VAC, 500 VDC |
| Voltage Rating | 690/700 VAC, 500 VDC |
