Description

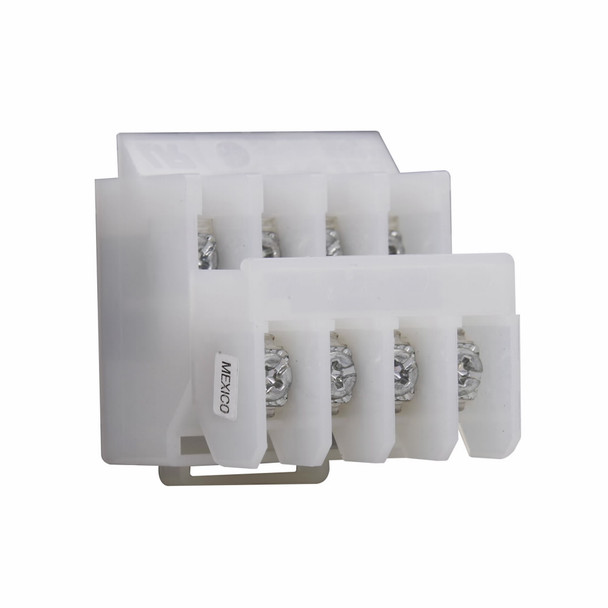

Bussmann 15188-4 Disconnect Terminal Block
Bussmann Disconnect Terminal Block, Depluggable In-Line Wiring, Series: 15188, 600 V, 30 A, 4 Pole, 16 to 12 AWG Copper Wire, Tin Plated Copper Alloy Terminal, 3/8 in Spacing, 12 in-lb Torque, DIN Rail Mounting, #6-32 Screw Connection, 105 deg C, Copper/Thermoplastic, White, 1.56 in L x 1.94 in H Dimensions
Additional Description: BUSS-15188-4 15188 CONNECTOR BLOCK
Catalog Description: Eaton Bussmann series 15188 depluggable DIN terminal block, 600V, 30A, Disconnect, Four-pole, #6-32 TPI Screw, 35 mm DIN rail, C-rail, White, Tin-plated copper alloy contact
Specifications
| UNSPSC | 39121410 |
|---|---|
| Amperage Rating | 30 |
| Amperage Rating | 30 A |
| Color | White |
| Connection type | #6-32 Screw |
| Dimensions | 1.56 in L x 1.94 in H |
| Material | Copper/Thermoplastic |
| Material | Thermoplastic |
| Mounting type | DIN Rail |
| Number of Poles | 4 |
| Series | 15188 |
| Spacing | 3/8 |
| Spacing | 3/8 in |
| Temperature Rating (Degrees F) | 105 |
| Temperature Rating (Degrees F) | 105 deg C |
| Terminal Type | Tin Plated Copper Alloy |
| Torque Rating | 12 |
| Torque Rating | 12 in-lb |
| Type | Depluggable In-Line Wiring |
| Voltage Rating | 600 |
| Voltage Rating | 600 V |
| Wire Size | 16 to 12 AWG Copper |
