Description

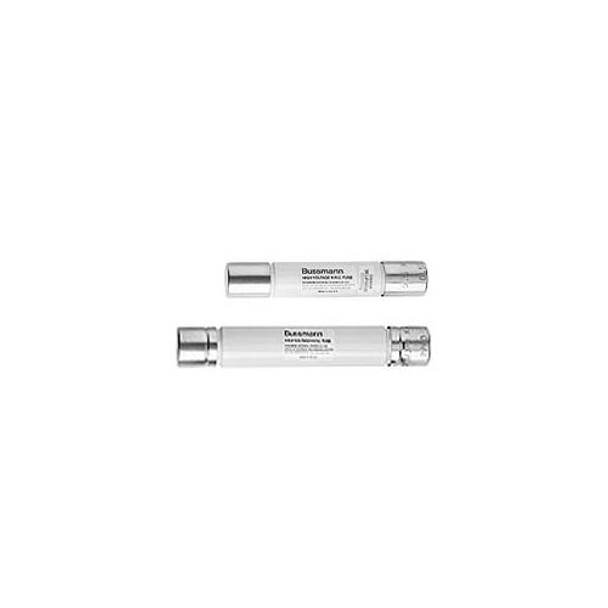

Bussmann 15.5CAVH1E Medium Voltage Fuse
Bussmann Fuse Link, 1-Barrel Current Limiting Medium Voltage, Series: CAV, Non-Indicating, 1 A, 15.5 kV, 80 kA Interrupt, Class: E, Ferrule Terminal, Bolt-On Mounting, 41.3 mm Dia x 327 mm L Body
Additional Description: BUSS-15.5CAVH1E 15.5KV 1A 12 FUSE""
Catalog Description: Eaton Bussmann series medium auxiliary fuse, VT fuse-link, medium voltage, 1 A, AC 15.5 kV, 327 x 41.3 mm, back-up, IEC, US, 1E, with striker, Protect of auxiliary trans, 1 A, 1E, 80K A Breaking Cap, Inst Air, E, IEC, AC, Class back-up
Specifications
| UNSPSC | 39121626 |
|---|---|
| Amperage Rating | 1 |
| Amperage Rating | 1 A |
| Class | E |
| Indicating/Non-Indicating | Indicating |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 80 |
| Interrupt Rating | 80 kA |
| Mounting type | Bolt-On |
| Series | CAV |
| Series | CAVH |
| Terminal Type | Ferrule |
| Type | 1-Barrel Current Limiting |
| Type | 1-Barrel Current Limiting Medium Voltage |
| Type | Single Barrel |
| Voltage Rating | 15.5 |
| Voltage Rating | 15.5 kV |
