Description

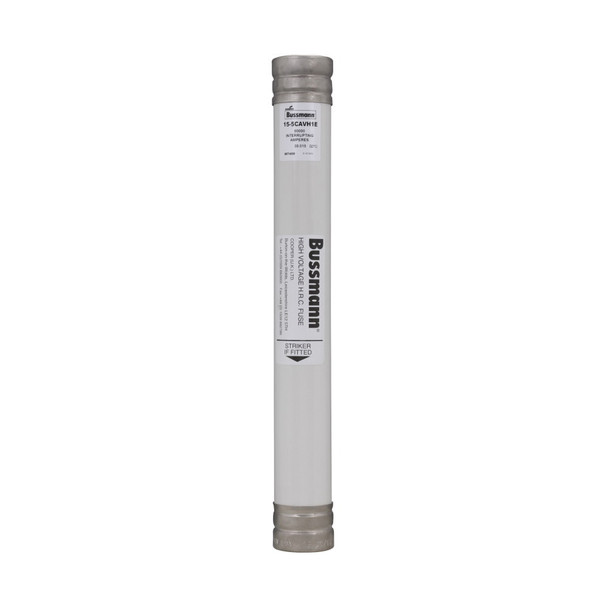

Bussmann 15.5CAVH0.5E Medium Voltage Fuse
Bussmann Fuse, 1-Barrel Current Limiting, Series: CAV, Non-Indicating, 0.5 A, 15.5 kV, 80 kA Interrupt, Class: E, Ferrule Terminal, Bolted-On Mounting, 1.63 in Dia x 12.87 in L Body
Additional Description: BUSS-15.5CAVH0.5E 15.5KV 0.5A 12 FUSE""
Catalog Description: VT fuse-link, medium voltage, 0.5 A, AC 15.5 kV, 327 x 41.3 mm, back-up, IEC, US, 0.5E, with striker
Specifications
| UNSPSC | 39121626 |
|---|---|
| Amperage Rating | 0.5 |
| Amperage Rating | 0.5 A |
| Class | E |
| Indicating/Non-Indicating | Indicating |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 80 |
| Interrupt Rating | 80 kA |
| Mounting type | Bolted-On |
| Mounting type | Bolt-On |
| Series | CAV |
| Series | CAVH |
| Terminal Type | Ferrule |
| Type | 1-Barrel Current Limiting |
| Type | Single Barrel |
| Voltage Rating | 15.5 |
| Voltage Rating | 15.5 kV |
