Description

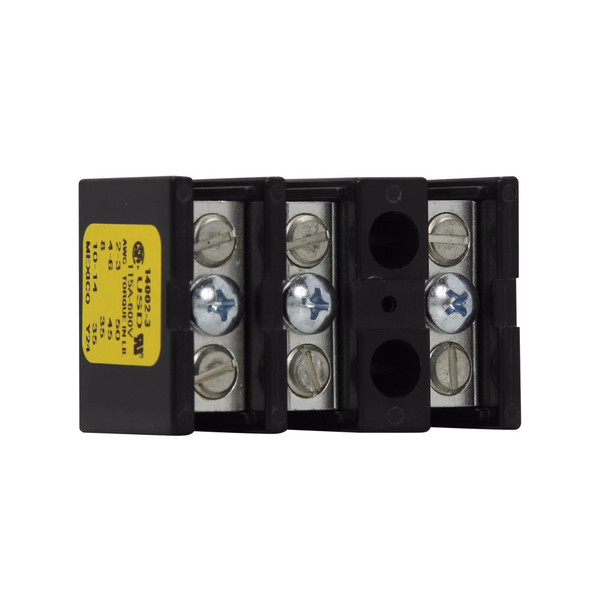

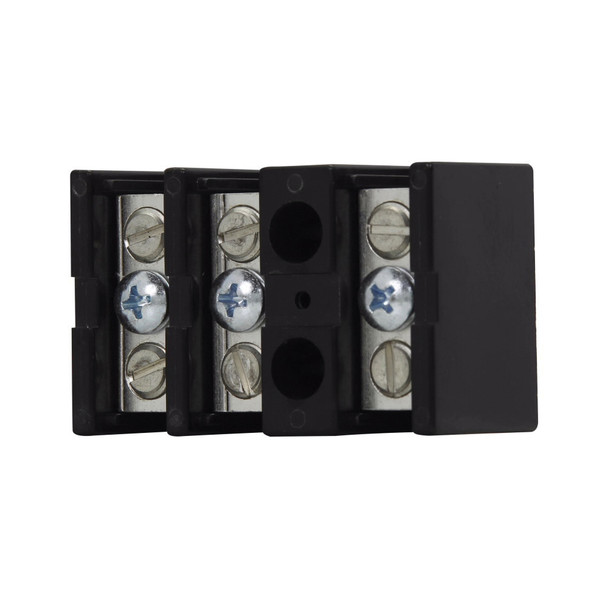

Bussmann 14002-3 Power Distribution Block
Bussmann Power Terminal Block, Barrier, Series: 14002, 600 VAC/VDC, 115 A, 3 Pole, 1 Primary Connections/Pole, 1 Secondary Connection/Pole, 14 to 2 AWG, 8 AWG Wire, 10 kA Short Circuit Current Rating, Black, 2.37 in L x 1.5 in W x 1.25 in H
Additional Description: BUSS-14002-3 BARRIER TERMINAL BLOCK
Catalog Description: Eaton Bussmann series power terminal block, 600 Vac, 600 Vdc, 115A, Power terminal block, Three-pole, SCCR: 10 kA - 14002-3
Specifications
| UNSPSC | 39121629 |
|---|---|
| Amperage Rating | 115 |
| Amperage Rating | 115 A |
| Color | Black |
| Dimensions | 2.37 in L x 1.5 in W x 1.25 in H |
| Number of Poles | 3 |
| Series | 14002 |
| Short Circuit Current Rating (kA) | 10 |
| Short Circuit Current Rating (kA) | 10 kA |
| Type | Barrier |
| Type | Barrier Splicer |
| Type | Barrier/Splicer |
| Voltage Rating | 600 |
| Voltage Rating | 600 VAC/VDC |
| Wire Size | 14 to 2 AWG, 8 AWG |
