Description

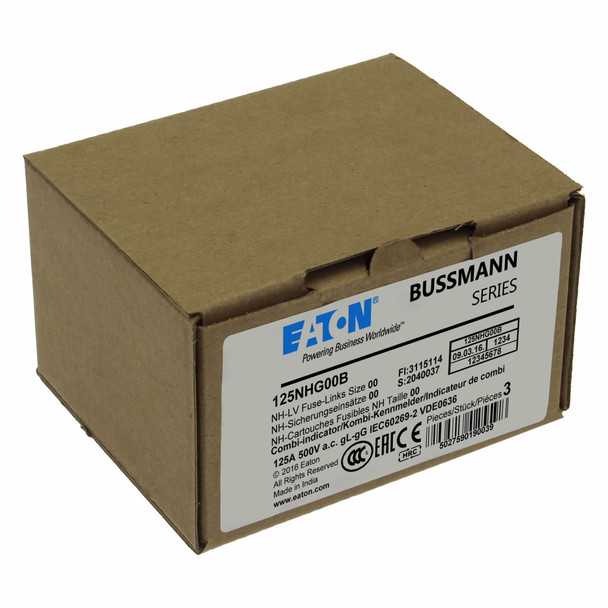

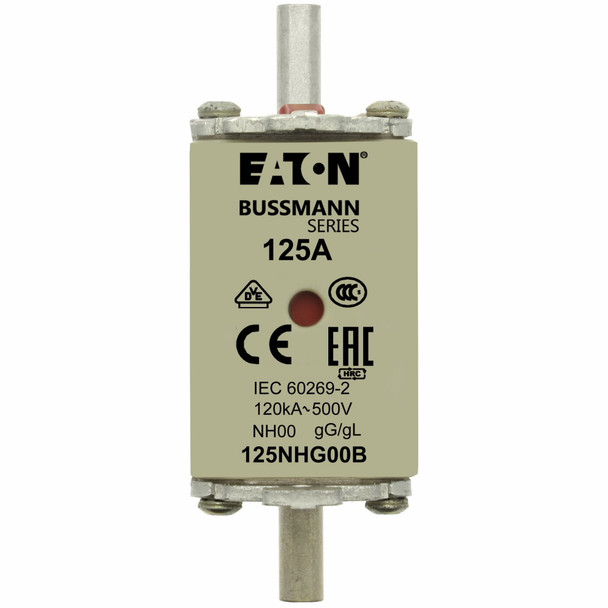

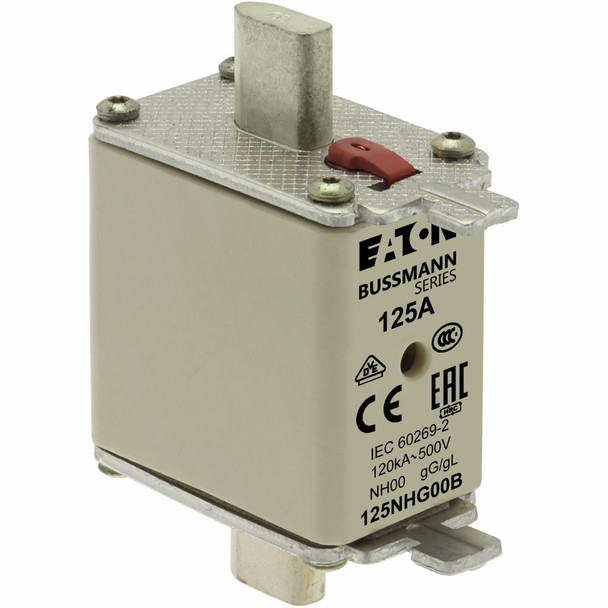

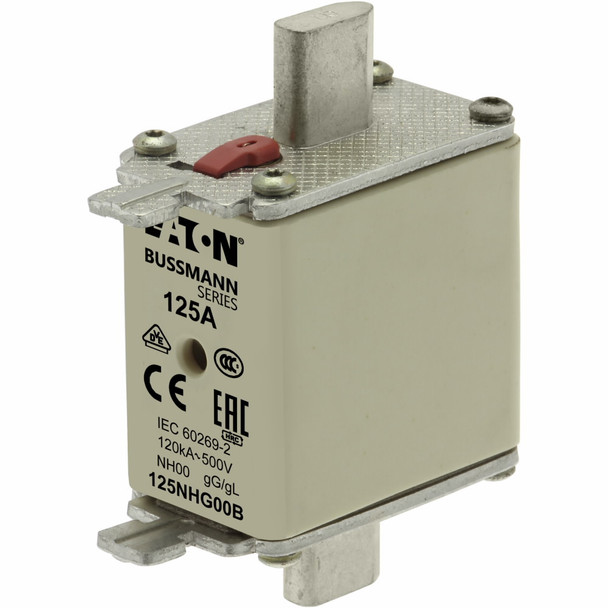

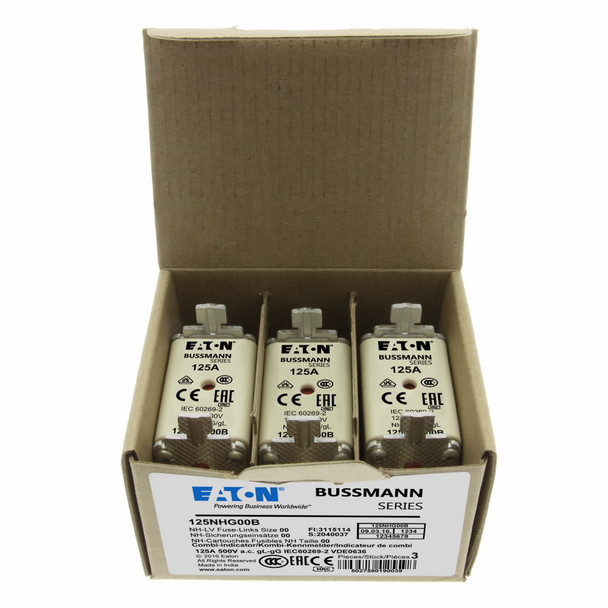

Bussmann 125NHG00B
EATON Bussmann Edison NH Fuse Link, Size 00 Dual Indicator, Series: NHG, 500 V, 125 A, 45 to 62 Hz Frequency, Rated Breaking Capacity: 120 kA, Holder Mounting, For Use With: Bussmann NH Size Photovoltaic Fuse, Class C gG/gL Fuse, Ceramic, 78.5 mm L x 30 mm W x 58 mm H Dimensions
Additional Description: BUSS-125NHG00B NH FUSE 125A 500V GG/GL SIZE 00
Catalog Description: Eaton Bussmann series low voltage NH Fuse, Live gripping lug, 500V, 125A, 120 kAIC, Combination fuse status indicator,Blade end connection, Class C gL/gG, Square-body with knife blade contact, Metal plated copper contact plate
Specifications
| UNSPSC | 39121626 |
|---|---|
| Amperage Rating | 125 A |
| Dimensions | 78.5 mm L x 30 mm W |
| Dimensions | 78.5 mm L x 30 mm W x 58 mm H |
| Frequency Rating | 45 to 62 Hz |
| Material | Ceramic |
| Mounting type | Holder |
| Rated Breaking Capacity | 120 kA |
| Series | NHG |
| Suitable For Use With | Bussmann NH Size Photovoltaic Fuse, Class C gG/gL Fuse |
| Suitable For Use With | Class C gG/gL Fuse |
| Type | Low Voltage Non-Indicating Size 00 |
| Type | Size 00 Dual Indicator |
| Voltage Rating | 500 V |
