Description

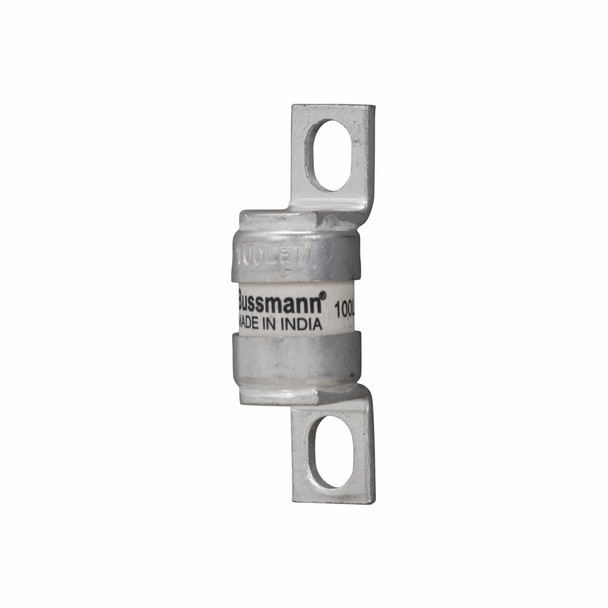

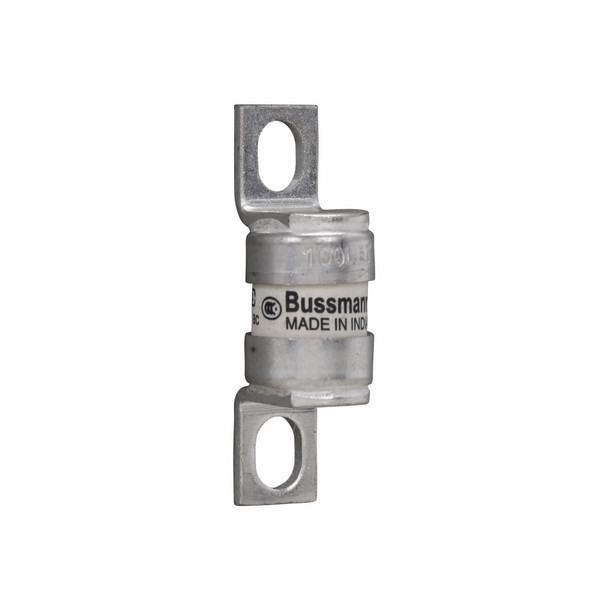

Bussmann 100LET High Speed Fuse
Bussmann High Speed Fuse, British Style, Series: LET, Indicating/Non-Indicating: Non-Indicating, 100 A, 240 VAC, 200 kAIC Interrupt, Class: AR, Blade End Terminal, Stud Mount, Cartridge Body Type, 56 mm L x 17.7 mm W x 19.1 mm H Body Size
Additional Description: BUSS-100LET 100A 240V AC BS88 FUSE
Catalog Description: Eaton Bussmann series high speed British standard fuse, 100A, 280 VAC/150 VDC (UL), Class aR, 200 kA RMS Sym., Breaking capacity 200 kA RMS Sym., 50 kA DC at 150 VDC
Specifications
| UNSPSC | 39121625 |
|---|---|
| Amperage Rating | 100 |
| Amperage Rating | 100 A |
| Body Type | Cartridge |
| Class | AR |
| Indicating/Non-Indicating | Non-Indicating |
| Interrupt Rating | 200 |
| Interrupt Rating | 200 kAIC |
| Interrupt Rating | 50/200 |
| Mounting type | Stud |
| Series | LET |
| Terminal Type | Blade |
| Terminal Type | Blade End |
| Type | British Style |
| Type | Type LET British BS88 Semi-Conductor |
| Voltage Rating | 240 VAC |
| Voltage Rating | 240 VAC, 150 VDC |
| Voltage Rating | 240/250 VAC, 150 VDC |
