Description

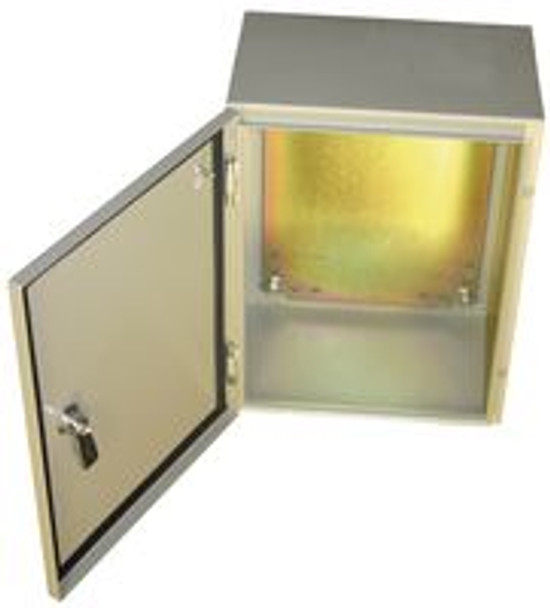

The SNB-3734 is a gray NEMA 4 Sheet Metal Box/Enclosure made of 16-gauge steel with smooth powder coated finish. Hinged cover clamps to the base with keyed quarter turn latch for a watertight seal. External mounting brackets allow box to be mounted on a wall or panel without having to remove the cover and exposing internal components to the environment. Bonding studs for grounding are provided on base and door.
- Easily machined and modified to your particular requirements
- Zinc-plated internal panel
Applications
Industrial
Contents
Sheet metal box, Internal panel and hardware.
| Enclosure Type: | Electrical / Industrial |
|---|---|
| Enclosure Material: | Steel |
| External Height - Metric: | 300mm |
| External Width - Metric: | 300mm |
| External Depth - Metric: | 200mm |
| IP Rating: | IP66 |
| Body Color: | Gray |
| NEMA Rating: | NEMA 1, 2, 4, 4X, 12 |
| External Height - Imperial: | 11.8" |
| External Width - Imperial: | 11.8" |
| External Depth - Imperial: | 7.87" |
| Product Range: | SNB Series |
| Data Sheet | Download Data Sheet | SNB-3734 |
| Drawing Sheet | Download Drawing Sheet | SNB-3734 |
