Description

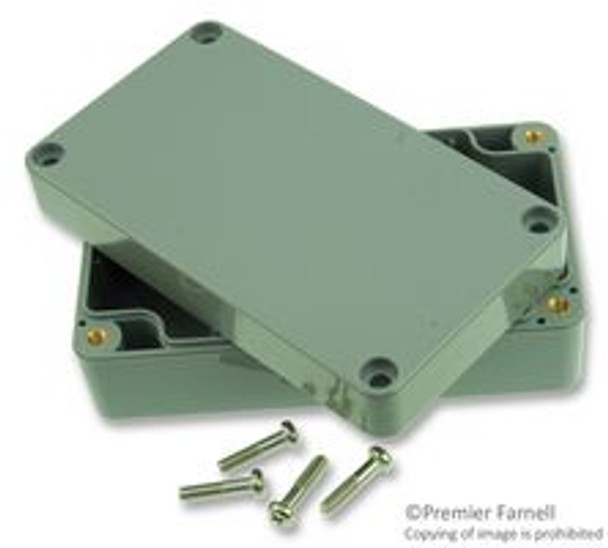

The PN-1344-DG is a dark-gray NEMA 4x Box made of ABS. This polycarbonate molded enclosure meet NEMA 1, 2, 4, 4x, 12 and 13 specifications and is ideal for PCB enclosures, junction boxes and other applications in the electrical and electronic industries. Wall mounting holes and cover attaching screws are outside the sealing area thus preventing ingress of moisture and dust. Cover screws are M-4 stainless steel, non-magnetic and fasten into threaded brass inserts. Most models have internal guide slots for mounting PCB assemblies vertically. Internal bosses allow mounting of PCBs horizontally or for connection of terminals etc.
- Smooth flat top cover
- UV stabilized UL94-HB Flammability rating
- Silicone sponge gasket
- 0 to 80°C Suggested service temperature range
- UV stabilized UL94-HB Flammability rating
- IP65 of IEC 529 Protection rating
Applications
Industrial, Power Management
| Enclosure Type: | Junction Box |
|---|---|
| Enclosure Material: | ABS |
| External Height - Metric: | 359.9mm |
| External Width - Metric: | 200mm |
| External Depth - Metric: | 150mm |
| IP Rating: | IP66 |
| Body Color: | Gray |
| NEMA Rating: | NEMA 1, 2, 3, 4, 4X, 12, 13 |
| External Height - Imperial: | 14.2" |
| External Width - Imperial: | 7.9" |
| External Depth - Imperial: | 5.91" |
| Product Range: | PN Series |
| Drawing Sheet | Download Drawing Sheet | PN-1344-DG |
