Description

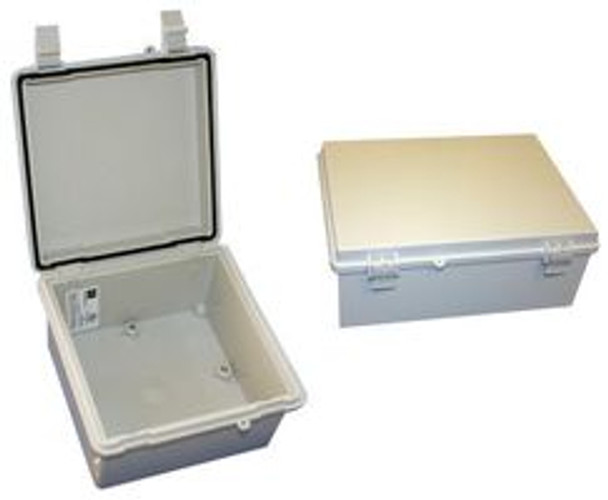

The NBF-32410 is a light-gray NEMA Box with clear door, made of PC/PBT blended plastic. The NBF series box is designed to IP66 of IEC 529 and NEMA 1, 2, 4 and 4x specifications. Comes complete with stainless steel wall mounting brackets and hardware. It has two or three plastic latches. These gasketed all-plastic enclosure has been designed to meet NEMA 1, 2, 4 and 4x and IEC529-IP66 requirements, which allows them to be used in many wet, dirty and/or corrosive environments.
- UL94-5VA Flammability rating
- All plastic construction including hinge pins
Applications
Industrial
| Enclosure Type: | Wall Mount |
|---|---|
| Enclosure Material: | PBT, Polycarbonate |
| External Height - Metric: | 149.9mm |
| External Width - Metric: | 150mm |
| External Depth - Metric: | 90mm |
| IP Rating: | IP66 |
| Body Color: | Gray |
| NEMA Rating: | NEMA 1, 2, 4, 4X |
| External Height - Imperial: | 5.9" |
| External Width - Imperial: | 5.9" |
| External Depth - Imperial: | 3.54" |
| Product Range: | NBF Series |
| Drawing Sheet | Download Drawing Sheet | NBF-32410 |
