Description

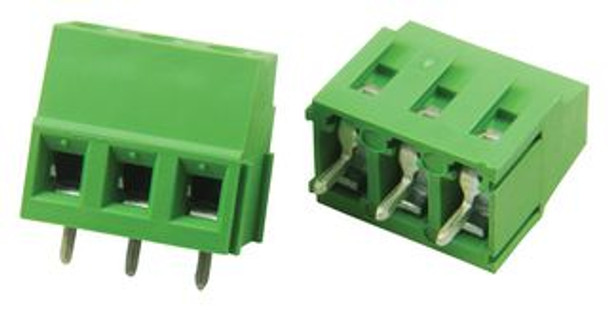

The DMB-4770-T3 is a 3-position 5.08mm Terminal Connector for use with terminal block and PCB and it is available for rear board location. 2.5mm² conductor area, screw wire connection method and it has 12AWG maximum 24AWG minimum wire size.
- 300V Rated voltage
- 20A Rated current
- 2000VAC/minute Insulation withstand voltage
- 500M? Insulation resistance or more at 500VDC
- 4kg.cm Torque
Applications
Industrial
| Pitch Spacing: | 5.08mm |
|---|---|
| No. of Positions: | 3Positions |
| Wire Size AWG Min: | 24AWG |
| Wire Size AWG Max: | 12AWG |
| Conductor Area CSA: | 2.5mm² |
| Wire Connection Method: | Screw |
| Rated Current: | 24A |
| Rated Voltage: | 250V |
| Block Orientation: | Through Hole Right Angle |
| Product Range: | - |
| Drawing Sheet | Download Drawing Sheet | DMB-4770-T3 |
