Description

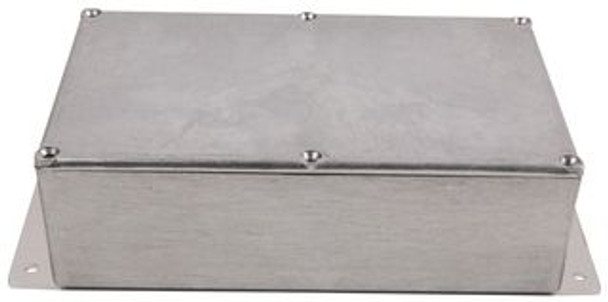

The CU-4247 is an Econobox with mounting bracket suited for Enclosures made of die-cast aluminium alloy with natural finish. The box with external mounting brackets increases both adaptability and use. It offers excellent screening properties and it can be easily machined or modified to any application requirement.
- Box assembled with #6-32 flat HD screw
- 0.062" Radius internal fillets
- 0.125" Radius internal and external rounds
- Mounts to wall or panel with #10 size screws (not furnished)
- Heavy duty 0.09" thick external wall mounting bracket
Applications
Industrial
| Enclosure Type: | Small |
|---|---|
| Enclosure Material: | Diecast Aluminum |
| External Height - Metric: | 56.1mm |
| External Width - Metric: | 119mm |
| External Depth - Metric: | 188mm |
| Body Color: | Natural |
| NEMA Rating: | - |
| External Height - Imperial: | 2.21" |
| External Width - Imperial: | 4.7" |
| External Depth - Imperial: | 7.39" |
| Product Range: | Econobox Series |
| Drawing Sheet | Download Drawing Sheet | CU-4247 |
