Description

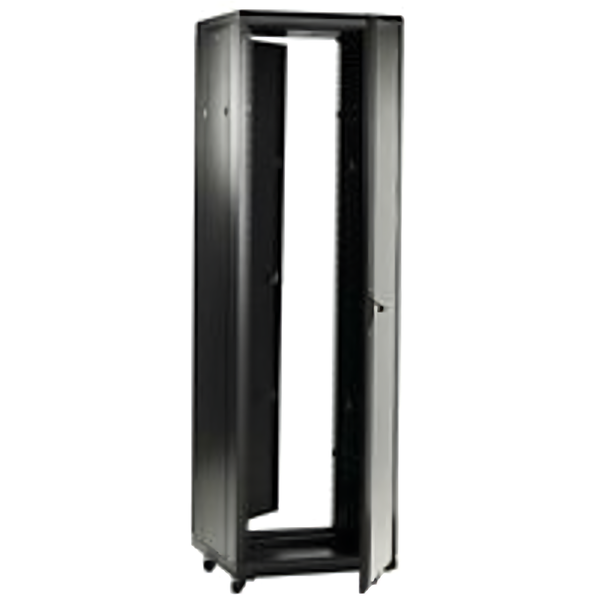

The Professional series Large Cabinet Racks made of steel with black textured powder coated finish and complete with ventilated tempered glass front door, locking rear door, removable sides. They have two pairs of fully adjustable panel mounting rails which includes unique notch at each U point to allow for rapid equipment location identification, large cut-out in base and cut-out comes covered by 2.5-inch deep metal cover plates that allow for adjustable opening providing as much or as little open space for cable access. Two additional 13 x 2.5-inch cut-outs in front and rear of base also come with readily removable covers. These series includes four casters and four levellers (unassembled) and ventilated shelves (one shelf in the 24U high cabinet, two shelves in the 40U and 45U cabinets). These series provide all of the features that one expects in a high end cabinet rack and more.
- Sturdy and durable steel construction
- EIA 310 Compliant for 19" rack-mount equipment
- Top mount fan box installed
- Vented at top and bottom of sides, which also can be locked
Applications
Industrial
| Cabinet Type: | 19 Inch Equipment |
|---|---|
| Product Range: | Professional Series |
| Rack U Height: | 45U |
| External Height - Imperial: | 85.6" |
| External Width - Imperial: | 23.6" |
| External Depth - Imperial: | 31.5" |
| Enclosure Material: | Steel |
| External Height - Metric: | 2.18m |
| External Width - Metric: | 600mm |
| External Depth - Metric: | 800mm |
| Panel Space Height - Imperial: | 78.75" |
| Panel Space Height - Metric: | 2000.25mm |
| Drawing Sheet | Download Drawing Sheet | BRP-12218 |
