Description

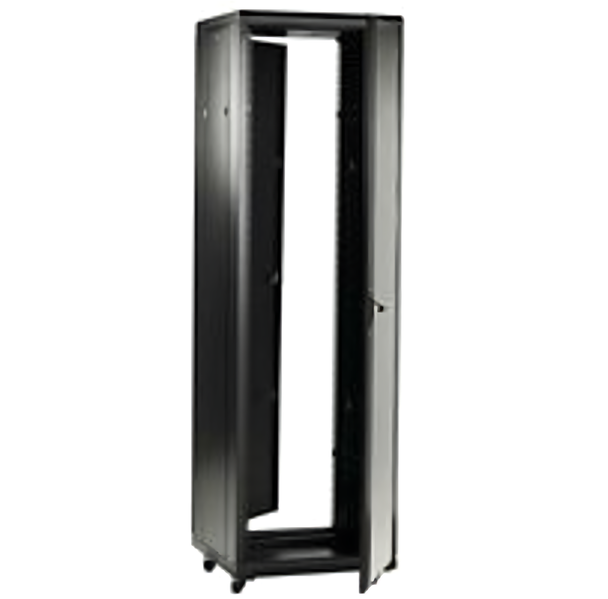

The BRP-12206 is a 40U BudRack Professional large Cabinet Rack made of steel with black textured powder coating finish. The BudRack Professional series rack is finished complete with ventilated tempered glass front door, locking rear door and removable sides. Two pairs of fully adjustable panel mounting rails included. The panel mounting rails include unique notch at each "U" point to allow for rapid equipment location identification. Large cutout in base comes covered by 2.5-inch deep metal cover plates that allow for adjustable opening providing as much or as little open space for cable access. Two additional 13 x 2.5-inch cutouts in front and rear of base also come with readily removable covers.
- Sturdy and durable construction
- Top mount fan box installed, two fans
- Vented at top and bottom of sides, which also can be locked
- Comes fully assembled
- Easy to clean
Applications
Industrial
Contents
2-pairs Adjustable panel mounting rails, 2 Ventilated shelves, 4 Casters and 4 Levelers.
| Cabinet Type: | 19 Inch Equipment |
|---|---|
| Product Range: | Professional Series |
| Rack U Height: | 40U |
| External Height - Imperial: | 76.8" |
| External Width - Imperial: | 23.6" |
| External Depth - Imperial: | 23.62" |
| Enclosure Material: | Steel |
| External Height - Metric: | 1.95m |
| External Width - Metric: | 600mm |
| External Depth - Metric: | 600mm |
| Panel Space Height - Imperial: | 70" |
| Panel Space Height - Metric: | 1778mm |
| Drawing Sheet | Download Drawing Sheet | BRP-12206 |
