Description
Free UPS Ground Shipping: Buy $500 or more of Power Cords

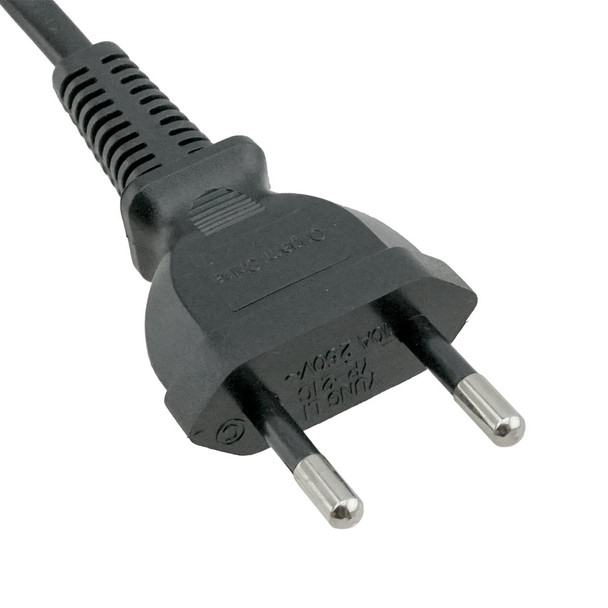

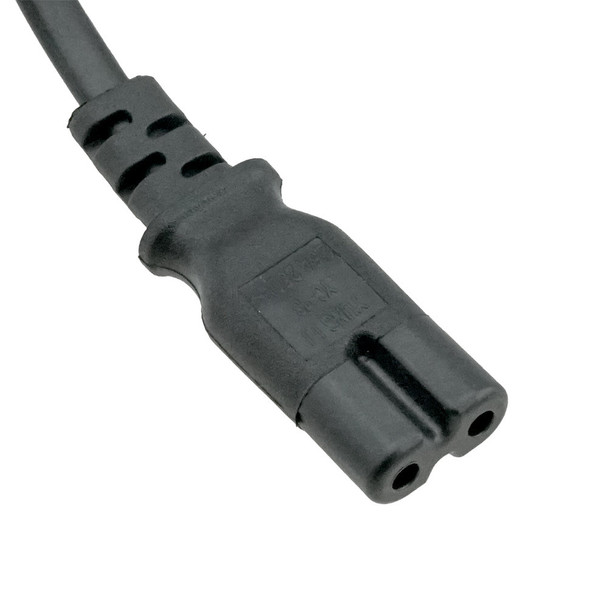

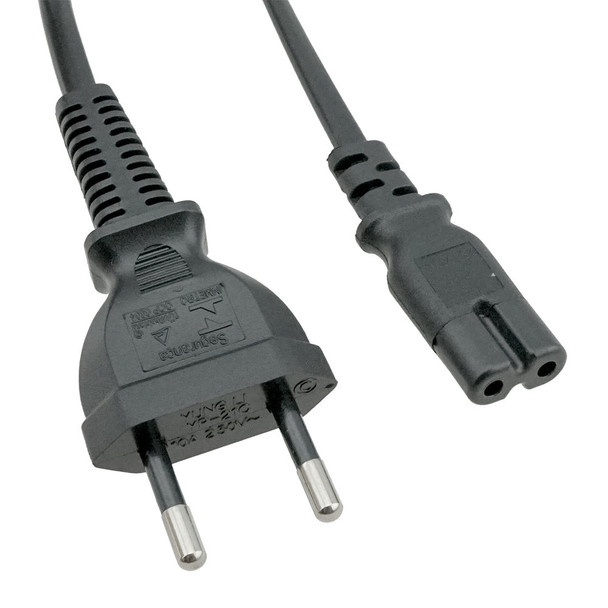

Brazil to C7 power cord: Brazil NBR 6147 standard 2 pin plug to IEC C7 with H05VVH2-F 0.75mm² wire black power cord. 6 feet with Brazil INMETRO approval.
| Attribute | Specification |
|---|---|
| Male Plug | Brazil NBR 6147 2 prong 2.5A |
| Female Receptacle | IEC60320 C7 2 prong 2.5A |
| Wire Jacket Standard | H03VVH2-F |
| Gauge | 0.75mm² |
| Conductors | 2 wire |
| Copper Wire Stranding | 24 strands of 0.20mm² |
| Jacket Material | PVC |
| Temperature Rating | Up to 70°C |
| Wire Outer Diameter | 3.4mm by 5.6mm (Two dimensions because it's not round) |
| Conductor Color Code | Blue, Brown; ICC (International color code) |
| Voltage | Up to 250 Volts AC |
| Amperage | Up to 2.5 Amps |
| Color | Black |
| Number Per Carton | 150 |
| Carton Weight | 31 lbs (13.9kg) |
| Carton Dimensions | 15.75 X 11.8 X 9 inches (40 X 30 X 23cm) |
| Testing | 100% are individually tested for Hi-Pot (dielectric voltage withstand test), opens, shorts and pinout. |
| Certifications | Brazil INMETRO |
| Environmental Compliance | RoHS, REACH, Sony Green Partner, ISO14001:2015, ISO9001:2015 |
| Country of Origin | China |
